The B-type exhaust muffler throttle valve combines two jobs into one compact brass fitting. It cuts the sharp hissing noise that comes out when your solenoid valves and cylinders vent air, and it lets you dial in exactly how fast that exhaust happens. Reayon Pneumatic stocks the full BESL range across six standard thread sizes.
What Is a B-Type Exhaust Muffler Throttle Valve?

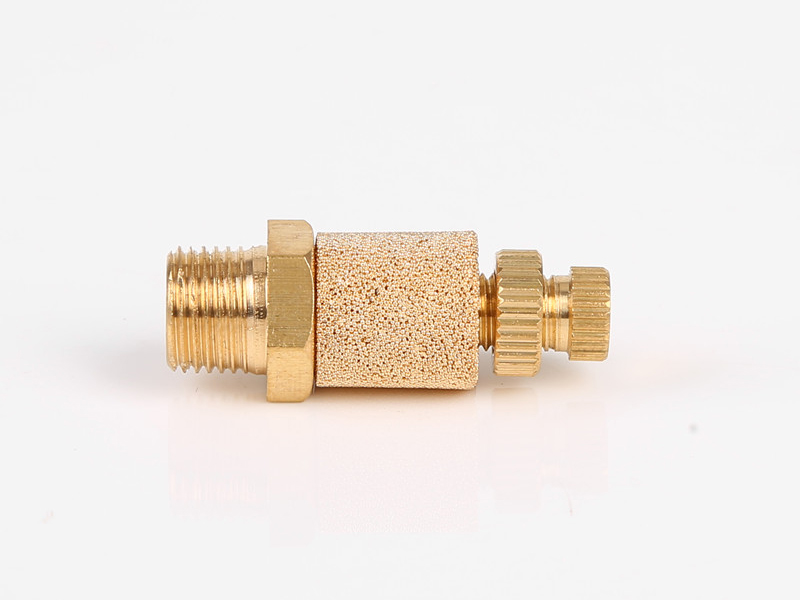

This part screws into the exhaust port of any directional control valve, air cylinder, or quick exhaust valve. Inside the brass housing sits a cylindrical sintered bronze element covered in thousands of microscopic pores. When pressurized air rushes out through those pores, the high-velocity jet breaks into countless slow-moving micro-streams. That diffusion process kills most of the acoustic energy that would otherwise become a loud pop or hiss.
On top of the bronze body sits a knurled brass throttle knob. Turn it clockwise to shrink the exhaust orifice, and your cylinder slows down. Turn it counterclockwise to open it wider, and things move faster. No extra fittings, no extra plumbing — one piece does both jobs.
If you are running multiple actuators near workstations, packaging lines, or anywhere operators sit within earshot of your machine bank, these mufflers make a measurable difference in ambient noise levels. They also keep debris, dust, and moisture from being sucked back into your valve's exhaust passage when the system retracts.
Key Features
Sintered Bronze Muffler Element
Porous bronze diffuser turns high-speed exhaust into quiet, low-velocity airflow. Typical noise drop: 15–25 dB vs. open port.
Adjustable Throttle Knob
Knurled brass screw provides stepless flow control. Fine-tune actuator speed without changing any other components in the circuit.
All-Brass Body
Machined brass construction handles 1.0 MPa continuous pressure. Resists corrosion from typical factory atmospheres and light chemical exposure.
G Thread Standard
Six sizes from G 1/8" to G 1". Direct fit into most European and Asian-made pneumatic valves. NPT/PT options on request.
Specifications and Dimensions
Material: Body — Brass (H59); Muffler Element — Sintered Bronze (Cu-Sn). Max Working Pressure: 1.0 MPa (10 bar / ~145 psi). Temperature Range: −10°C to +80°C (14°F – 176°F).
How It Works — Four Steps
Compressed air exits the valve port and enters the B-type muffler chamber.
Throttle knob sets the effective orifice area — more open means faster exhaust.
Sintered bronze element splits the remaining jet into thousands of micro-channels.
Dissipated low-pressure air drifts quietly out into the surrounding workspace.
The combination of mechanical throttling (step 2) and porous diffusion (step 3) gives you control over actuator speed while cutting noise at the same time. Neither method alone would do both jobs effectively.
Any place you have solenoid valves cycling frequently and people nearby, a B-type muffler is worth considering. The cost is low compared to hearing protection programs, worker fatigue complaints, or local noise ordinance violations.
Installation and Maintenance Tips
Hand-tighten into the valve exhaust port first, then add a quarter turn with a wrench on the hex flats. Over-torquing can crack the brass body or crush the bronze element seat.
Use PTFE tape or a thin coat of pipe dope on the threads if you see minor leakage around the joint after initial pressurization.
Set the throttle knob to mid-position before powering up the system. Then adjust based on actual actuator behavior rather than guessing beforehand.
Inspect the bronze element surface every 6–12 months depending on cycle frequency and air quality. Replace it if pores look clogged, oily, or discolored.
If you notice the actuator slowing down over time with the same knob position, check whether the muffler element has accumulated contamination before blaming other parts of the circuit.
Frequently Asked Questions
What does a B-type exhaust muffler throttle valve do?
A B-type exhaust muffler throttle valve serves two functions at once. It reduces the loud noise that comes out when a solenoid valve or air cylinder vents air to atmosphere, and it lets you adjust how fast that exhaust flow happens. The sintered bronze muffler body breaks high-speed compressed air into many tiny streams, which cuts down noise significantly. The threaded adjustment knob on top changes the internal orifice size so you can fine-tune the exhaust speed of your cylinder or valve. Reayon Pneumatic manufactures this component across six standard sizes from G 1/8 inch to G 1 inch.
How much noise reduction can I expect from a B-type muffler?
A properly sized B-type exhaust muffler typically reduces exhaust noise by 15 to 25 decibels compared to a bare open port. The exact number depends on your operating pressure, flow rate, and which model size you pick. The sintered bronze porous element works best when matched to your system's actual CFM output. If you are running pressures above 0.7 MPa or flows above the rated capacity of the muffler, consider stepping up one size for better performance.
What thread types are available for this exhaust muffler?

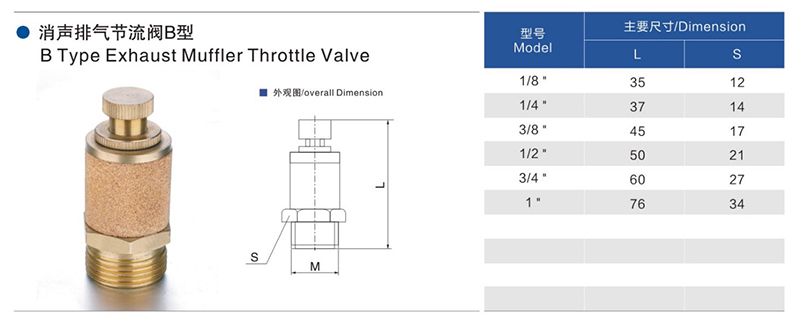

Standard models ship with G (BSPP) parallel threads in six sizes: G 1/8 inch, G 1/4 inch, G 3/8 inch, G 1/2 inch, G 3/4 inch, and G 1 inch. NPT and PT threads are available on request through Reayon Pneumatic's custom order channel. Check the dimension table below for overall length (L) and hex wrench flat (S) measurements for each size. The male thread screws directly into the exhaust port of most directional control valves, air cylinders, or quick exhaust valves.
Can I use this as a speed controller for my air cylinder?
Yes, but there is an important difference between a dedicated speed controller and this B-type unit. A standard meter-out speed controller goes on the cylinder port before the air enters or leaves the cylinder bore. This B-type muffler throttle installs at the exhaust outlet of a solenoid valve, not at the cylinder itself. It controls how fast the trapped air escapes from the valve's exhaust port. For simple single-acting circuits where you only have one exhaust path, it works well as a low-cost speed regulator. For precision positioning or heavy loads, pair it with a proper flow control valve on the cylinder side and use this primarily for its noise-reducing function.
How often should I replace the sintered bronze muffler element?
In clean factory air systems with a well-maintained filter-regulator-lubricator (FRL) upstream, the bronze element usually lasts two to three years under normal cycling conditions. If your environment has oil mist, metal particles, or chemical vapors in the exhaust stream, inspect the element every six months. Signs it needs replacement include visible clogging on the surface, a noticeable increase in back pressure causing slower actuator speeds, or the muffler feeling hot to the touch during operation. Reayon Pneumatic stocks replacement elements for all B-series sizes. To change it, unscrew the old element from the brass base, apply thread sealant sparingly, and thread the new one in hand-tight plus a quarter turn with pliers.
What is the maximum working pressure and temperature range?
The rated maximum working pressure is 1.0 MPa (approximately 145 psi or 10 bar). The recommended operating temperature range is minus 10 degrees Celsius to plus 80 degrees Celsius (14 F to 176 F). The brass body tolerates brief temperature spikes beyond these limits, but extended operation outside this range may reduce the lifespan of the sintered bronze element and compromise the seal integrity. If your application runs near or above these limits, contact our engineering team via the contact page for a material variant recommendation.
