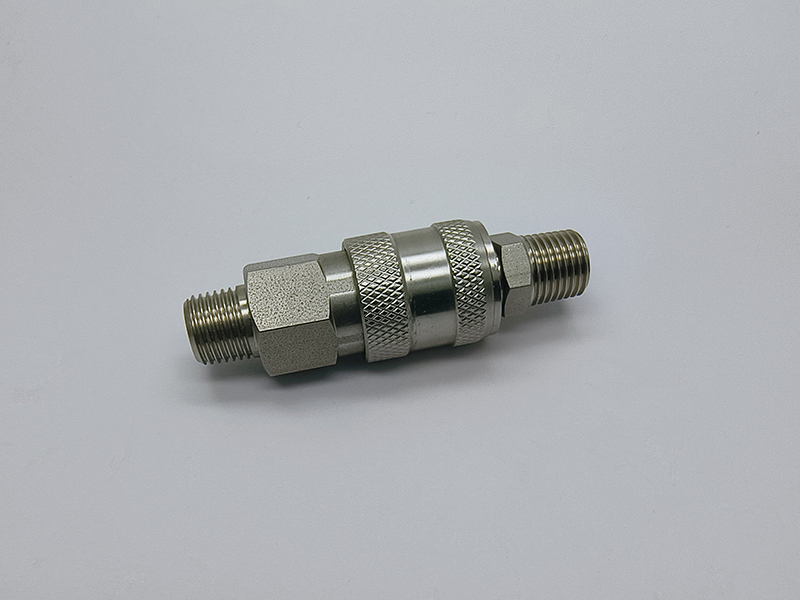

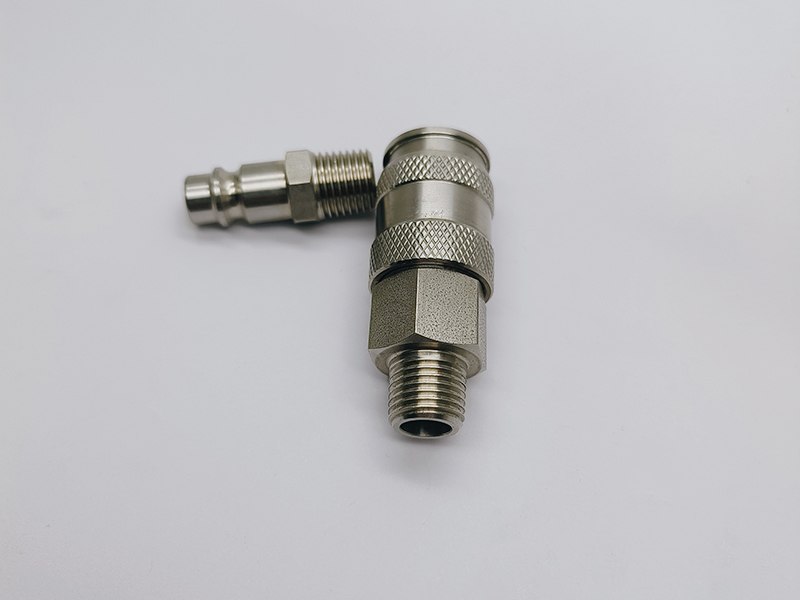

Reayon 320 Series Pneumatic Safety Close Type Quick Couplings | High Flow Industrial Couplers

Reayon Pneumatic 320 Series Safety Quick Couplings are Euro-standard pneumatic connectors for industrial compressed air systems. Designed for high flow, safe operation and long service life, these one-hand quick couplings perfectly fit most industrial pneumatic equipment for daily and heavy-duty work.

Built with a 7.6mm large bore, the couplings support a max airflow of2250 L/min with low pressure loss, enabling faster tool operation. They work stably at 16 bar working pressure (140 bar burst pressure) and adapt to temperatures from -20°C to +100°C, suitable for various harsh working environments.

Equipped with a two-stage safety lock structure, the couplings prevent accidental disconnection and air leakage, complying with ISO 4414 and EN 983 safety standards. Made of zinc-plated steel and brass with multiple sealing options (NBR, FKM, EPDM, etc.), they feature great corrosion resistance and durability for long-term use.

Featuring easy one-handed operation, the couplings save labor and improve work efficiency. They are fully interchangeable with mainstream brands like Rectus, Legris, Tema and Bosch. Multiple thread and hose barb sizes are available to match different pipeline and equipment needs.

Ideal for pneumatic tools, automotive production lines, industrial automation systems, construction and mining equipment.

ChooseReayon Pneumatic 320 Series Quick Couplings for safe, efficient and cost-effective pneumatic connections!
