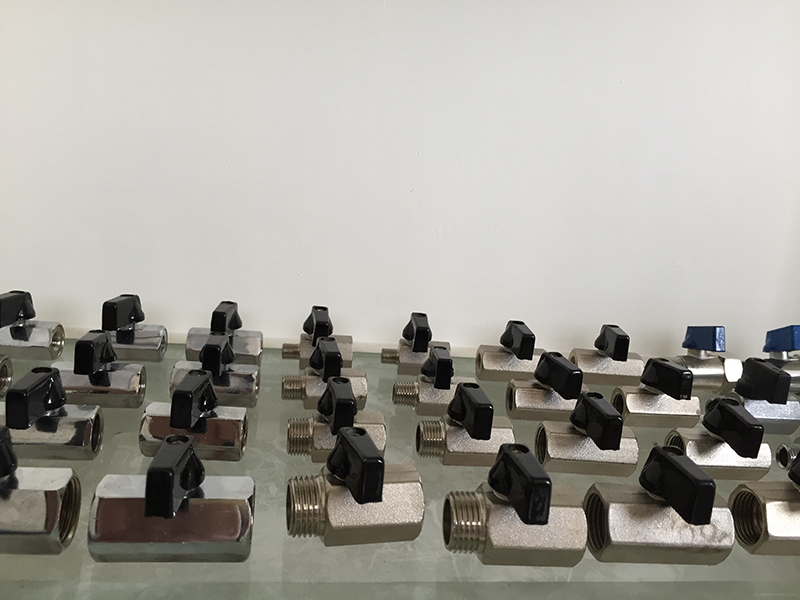

A compact brass ball valve built for tight installations. Chrome-plated body, quarter-turn operation, rated to 25 bar.
What Makes the MV Series Different
The MV Series Mini Ball Valve solves a common problem: you need a reliable shut-off valve, but the installation space is too small for a standard full-size valve. The MV Series cuts the footprint down without cutting performance.
The valve body is extruded from brass bar stock — not sand-cast. Extrusion produces a denser, more uniform grain structure. The result is higher mechanical strength and better pressure resistance. The chrome plating adds corrosion resistance and a clean finish that holds up in humid and outdoor environments.
The MV Series comes in four port sizes, covering the most common requirements for instrumentation, pneumatic, and plumbing work.
Key Features
Compact Extruded Brass Body
Extruded brass construction — denser than sand-cast alternatives
Chrome plating as standard for corrosion resistance
Body design optimized for confined and hard-to-reach spaces
Quarter-Turn Operation
90-degree handle rotation for full open or full close
PTFE ball seats for smooth cycling and tight seal
Handle color options: blue or black nylon, aluminum
Threaded Connections
Available with BSPP (G), BSPT (R), and NPT threads
Note: Ball valves are designed for use in the fully open or fully closed position. Do not use the MV Series for throttling or partial-open flow regulation. Operating in a partially open position can cause cavitation, seat wear, and premature failure.
Why Choose Reayon Pneumatic
Reayon Pneumatic has supplied brass fittings and valves to industrial buyers for over 10 years. The MV Series reflects that experience — a straightforward, dependable valve at a practical price.
Full size range in stock — all four port sizes ready to ship
100% pressure tested — every valve is checked for seat and body leakage before packing
Thread options — BSPP, BSPT, and NPT available to match your regional standards
OEM support — custom handle colors, private-label packaging, and bulk pricing for 500+ unit orders
What sizes are available for the MV Series Mini Ball Valve?
The MV Series is available in four sizes: 1/8", 1/4", 3/8", and 1/2". All sizes use standard threaded connections and are in stock for fast shipping.
Can the MV Series valve be used for throttling or flow regulation?
No. The MV Series is designed for full-open or full-close operation only. Using a ball valve in a partially open position for throttling can damage the seat and shorten service life. For flow regulation, choose a needle valve or globe valve instead.
What is the maximum pressure and temperature rating?
The MV Series is rated to 25 bar (360 PSI) and handles temperatures from -10°C to +250°C. This covers most water, gas, and compressed air applications in industrial and commercial settings.
What media are compatible with this brass ball valve?
The chrome-plated brass body is compatible with water, compressed air, natural gas, and non-corrosive fluids. It is not recommended for use with strong acids, alkalis, or seawater. For corrosive media, consider a stainless steel variant. Contact us for media-specific guidance.
Does Reayon Pneumatic offer bulk pricing and OEM customization?
Yes. Reayon Pneumatic offers tiered bulk pricing for orders starting at 500 units. OEM customization includes custom handle colors, private-label packaging, and special thread types. Request a quote through the contact page for project-specific pricing.
