Reayon Pneumatic Series 19 delivers 430 L/min in a chrome-plated steel body. Direct swap with PCL60 and Rectus 19. Socket and plug variants in BSPT, BSPP, and hose barb.
Series 19 Quick Couplings — What You Get
Series 19 is a British-profile pneumatic quick coupling. It is one of the most common quick-connect standards in workshop air systems across Europe and Asia. At Reayon Pneumatic, we manufacture Series 19 from carbon steel with a full chrome plate. The result is a coupling that mates with any PCL60 or Rectus 19 connector and holds up under daily shop use.
The design is compact. You can fit multiple couplers side by side on a manifold block without crowding. At the same time, the 4.8 mm bore keeps airflow at 430 L/min — enough for most handheld pneumatic tools and small automation circuits.
Two operating modes are available. The standard version requires both hands — push the sleeve back, insert the plug, release. The single-hand variant lets you push the plug straight in. Both lock securely and release with a sleeve pull.
If you already use pneumatic quick couplings in your production line, Series 19 is a drop-in replacement for what you have.

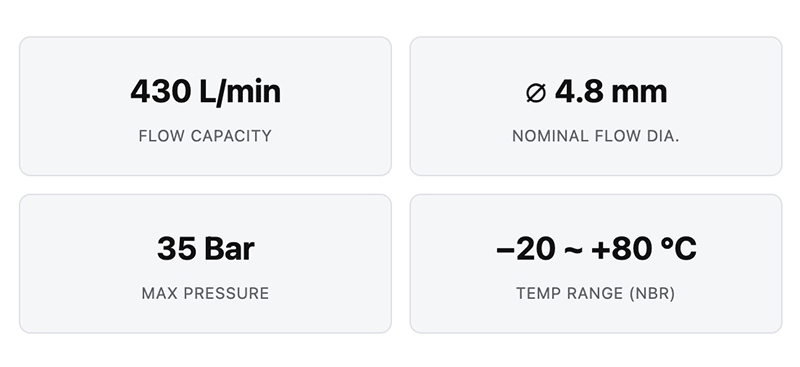

Specs at a Glance
Series
Series 19 — ASIA / British profile
Flow
430 L/min
Bore
∅ 4.8 mm
Body material
Carbon steel, chrome-plated
Seal
NBR (standard)
Max pressure
35 Bar (500 psi)
Temperature
−20 °C to +80 °C
Interchange
PCL60, Rectus 19
Media
Compressed air
Operation
Double-hand or single-hand

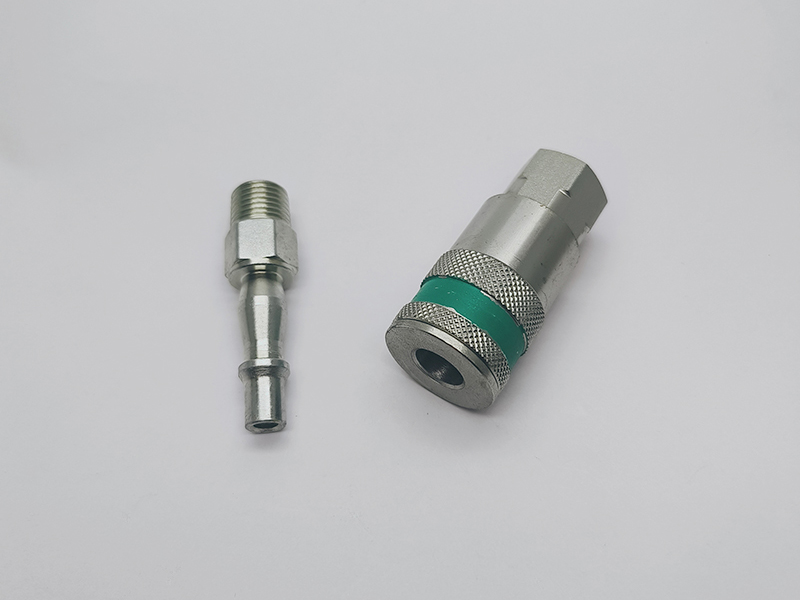

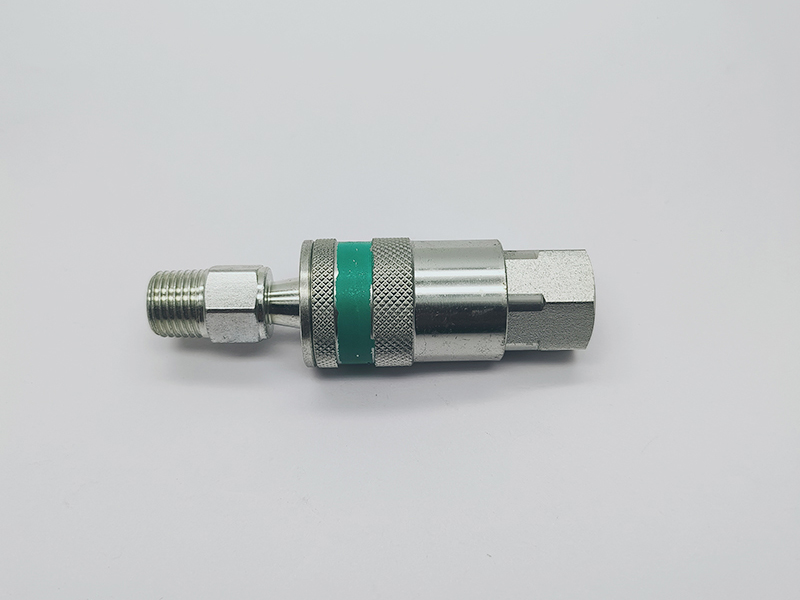

Socket and Plug Options
Socket (Coupler) Types
The socket mounts on the air supply side — a manifold, FRL outlet, or hose end. Reayon Pneumatic stocks three connection styles for Series 19 sockets.
PART NO.
CONNECTION
SIZES
19-SM
Male BSPT
R1/4, R3/8, R1/2
19-SF
Female BSPP
G1/4, G3/8, G1/2
19-SH
Hose barb
ID 6, 8, 10, 13 mm
Plug (Nipple) Types
The plug goes on the tool or the hose end that you disconnect. Choose the thread or barb that matches your tool inlet.
PART NO.
CONNECTION
SIZES
19-PM
Male BSPT
R1/4, R3/8, R1/2
19-PF
Female BSPP
G1/4, G3/8, G1/2
19-PH
Hose barb
ID 6, 8, 10 mm
Tip: The most common pairing is 19-SM R1/4 (socket) with 19-PM R1/4 (plug). Reayon Pneumatic keeps this combination in regular stock.
Fits PCL60 and Rectus 19 — No Adapters
Series 19 follows the PCL60 / Rectus 19 profile. The locking groove diameter, sealing face geometry, and insertion depth are identical to the original standard. If your workshop already runs PCL60 couplers on the wall and Rectus 19 plugs on the tools, a Reayon Series 19 socket will accept those plugs without issue — and vice versa.
We check interchange on every batch. A sample set from each production run is tested against a PCL60 reference to confirm fit, seal, and release force.
No o-ring adapters. No shims. No "sort of fits." If you need additional pneumatic fittings to complete your airline setup, Reayon Pneumatic can supply those too.
Where Reayon Series 19 Fits
Workshop air lines. Wall-mounted coupler at each bay. Tools connect in seconds.
Automated machinery. Compact enough for tight manifold blocks on pick-and-place or packaging lines.
Portable compressors. Light body. Fits in service-van tool kits.
Tire shops and service bays. Fast on/off for inflators and impact wrenches.
Pneumatic control panels. 35 Bar rating covers most industrial air circuits.
If your application runs at higher pressure or with hydraulic fluid, look at our S1 hydraulic quick couplings instead. For hose-end connections in non-pneumatic systems, Reayon hose clamps on RH Hardware cover that side.
FAQ — Reayon Pneumatic Series 19
Is Reayon Pneumatic Series 19 fully compatible with PCL60 and Rectus 19?
Yes. Reayon Pneumatic Series 19 follows the PCL60 profile exactly. You can connect a Reayon Series 19 socket to any PCL60 or Rectus 19 plug without adapters. The sealing face and locking groove are machined to the same dimensional standard. We batch-test interchange on every production run.
How is Reayon Pneumatic Series 19 quality different from generic alternatives?
Three things separate a Reayon Series 19 from a no-name copy. Material: we use carbon steel with a uniform chrome plate — not zinc or thin nickel flash. Threads: every part is gauged — BSPT to R-series, BSPP to G-series. Seals: NBR compound from a fixed supplier, batch-tested for hardness and swell. You get the same coupling every order.
What thread sizes and connection types does Reayon Pneumatic offer for Series 19?
Reayon Pneumatic stocks six socket variants (19-SM male BSPT, 19-SF female BSPP, 19-SH hose barb) and three plug variants (19-PM male BSPT, 19-PF female BSPP, 19-PH hose barb). Thread sizes cover R1/4, R3/8, R1/2 and G1/4, G3/8, G1/2. Hose barbs fit ID 6 mm, 8 mm, 10 mm, and 13 mm.
Can I get samples of Reayon Pneumatic Series 19 before a bulk order?
Yes. Reayon Pneumatic ships sample pairs on request. Tell us which socket and plug you need and we will send a matched set for fit-and-function testing. We cover the samples — you cover the freight for the first shipment.
What is the typical lead time for Reayon Pneumatic Series 19 orders?
Standard stock items ship within 5–7 working days. For volume orders or non-stock thread sizes, expect 15–25 days. We keep popular combinations — 19-SM R1/4 with 19-PM R1/4 — in regular inventory.
