In industrial pneumatic systems, choosing the right fitting type directly affects installation efficiency, system stability and maintenance cost. Two commonly used connection solutions—Push-to-Connect (one-touch) fittings and Push-to-Tighten fittings—are often confused by customers. Today, Reayon Pneumatic clearly explains their core differences, advantages and applicable scenarios, helping you make the best choice for your PU tubing, nylon tubing or other air hose systems.
First, let’s clarify the basic definition of the two types of fittings, both of which are core products of Reayon Pneumatic, designed for efficient and reliable pneumatic connections.

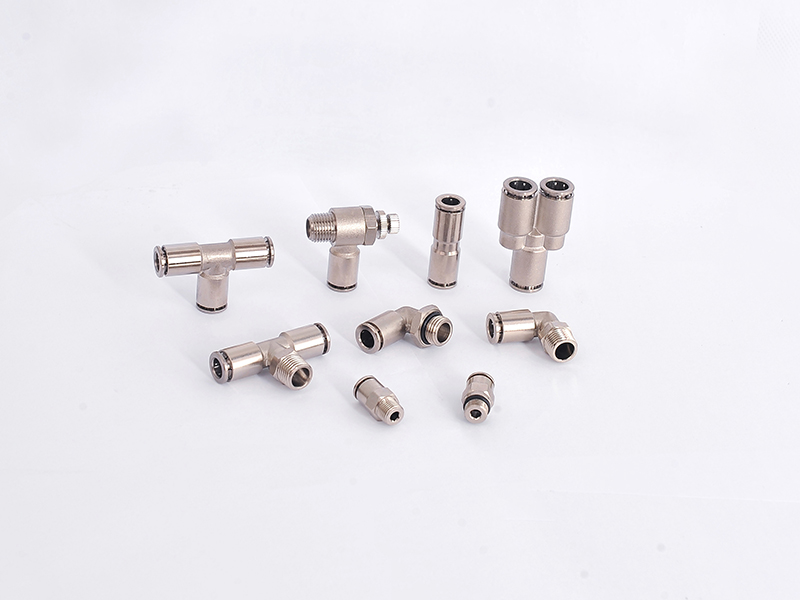

1. What Are Push-to-Connect (One-Touch) Fittings?
Push-to-Connect (PTC) fittings, also known as one-touch fittings, are the most widely used quick-connection fittings in automation systems. As the name suggests, no tools are needed—you only need to cut the tubing squarely, insert it into the fitting socket until it clicks, and the internal stainless steel claws and sealing ring will automatically fix and seal the tubing.
Reayon PTC fittings are compatible with both PU tubing and nylon (PA) tubing, covering tube sizes from OD 4mm to 16mm (1/8" to 1/2"). The disassembly is also simple: just press the release ring, and the tubing can be pulled out easily, which is very suitable for scenarios that require frequent disassembly and maintenance.

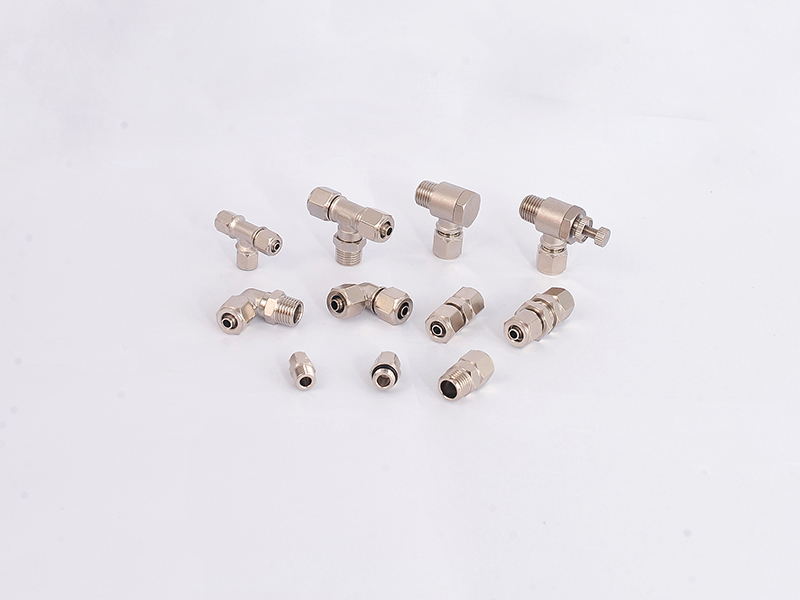

2. What Are Push-to-Tighten Fittings?
Push-to-Tighten (PTT) fittings, also called compression fittings or thread-tighten fittings, require a combination of pushing and thread tightening to complete the connection. The installation steps are: insert the cut tubing into the fitting, then use a wrench to tighten the lock nut or knurled cap, and the compression sleeve inside the fitting will compress the tubing to achieve sealing and fixing.
Reayon PTT fittings are made of high-strength nickel-plated brass, with strong pressure resistance and anti-loosening performance. They are mainly used for scenarios that require high connection stability, such as high-pressure pneumatic systems or fixed piping layouts.
3. Core Differences: Push-to-Connect vs Push-to-Tighten
To help you distinguish more clearly, we summarize the key differences in 5 aspects:
Installation Method: PTC fittings → Tool-free, one-push installation; PTT fittings → Need wrench to tighten the thread, tool-required.
Disassembly Convenience: PTC fittings → Press the release ring to pull out the tubing quickly, easy for maintenance; PTT fittings → Need to loosen the thread with a wrench, time-consuming.
Pressure Resistance: PTC fittings → Suitable for medium and low pressure (0-1.0MPa), meeting most industrial automation needs; PTT fittings → Higher pressure resistance (up to 1.6MPa), suitable for high-pressure working conditions.
Applicable Tubing: PTC fittings → Perfectly compatible with PU (flexible) and nylon (semi-rigid) tubing; PTT fittings → More suitable for rigid or semi-rigid tubing (nylon, copper tube), also applicable to PU tubing but less flexible.
Applicable Scenarios: PTC fittings → Automation equipment, moving parts (robotic arms), frequent disassembly scenarios; PTT fittings → Fixed piping, high-pressure systems, harsh environments (vibration, high temperature).
4. How to Choose? Reayon Expert Suggestion
• Choose Reayon Push-to-Connect Fittings if: You use PU/nylon tubing, need quick installation and frequent maintenance, or your system is medium-low pressure (most automation, packaging, electronic equipment scenarios).
• ChooseReayon Push-to-Tighten Fittings if: Your pneumatic system is high-pressure, the tubing is fixed (no frequent movement), or you need extra anti-loosening performance (automotive manufacturing, heavy machinery scenarios).
No matter which type of fitting you need, Reayon Pneumatic provides high-quality products that meet international standards (RoHS, CE), with full sizes, reliable sealing and long service life. All fittings are compatible with standard PU and nylon tubing, ensuring seamless integration into your pneumatic system.
Contact Reayon Pneumatic today for a free catalog, samples or customized solutions, and let our professional team help you select the most suitable pneumatic fittings for your project.
