Brass, Nickel-Plated Brass, or Plastic: Which Pneumatic Push-In Fittings Should You Stock?

Which pneumatic push-in fittings should a distributor actually put on the shelf? Stock plastic for standard automation at room temperature. Stock nickel-plated brass for hot, wet, oily, or visible installations. Treat bare brass as an economy line for dry indoor air only. That is the short answer. The long answer is the six checks below, the same ones we walk through with distributors at Reayon Pneumatic when they plan a first order. Each check takes minutes, and each one prevents a specific kind of dead stock or customer complaint.

Check 1: Map Each Material to Your Customer's Environment

Material choice is not a quality ranking. It is a match between the fitting body and the air around it.

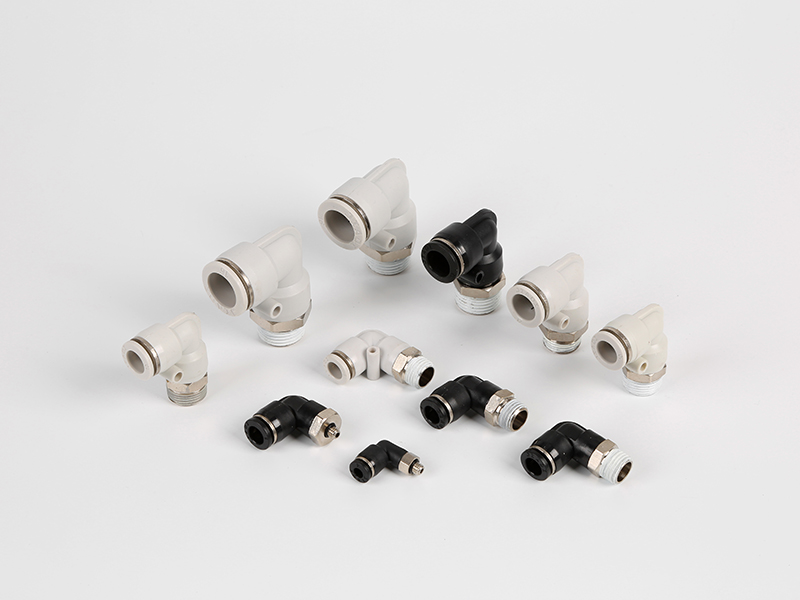

• Plastic bodies (PBT or POM) belong on standard compressed air at room temperature: assembly lines, packaging machines, robot arms and gantries where light weight matters. They cost the least, never rust, and the nickel-plated brass thread insert on male-threaded models keeps the thread side sound.

• Nickel-plated brass bodies belong where plastic struggles: ambient heat above 60 °C near steam lines, ovens or molding machines; oil splash and solvents; heavy vibration; panel-mounted bulkheads carrying hanging tube weight; and visible food, lab or instrumentation panels where the finish matters.

• Bare brass bodies work in dry indoor air at the lowest price. But brass tarnishes, and where condensate sits in the line it can dezincify and pit. Threads also gall faster without the nickel layer. Stock it only if your customers fit that dry profile.

Ask each retail or OEM account one question: where does the fitting actually live? The answer sorts most of your catalogue for you.

Check 2: Read the Pressure and Temperature Data Before You List a SKU

Every push-in line has two numbers that decide whether it survives in the field, and both belong on your shelf label.

• Plastic push-fit line: 0 to 150 PSI (0 to 1.0 MPa) working pressure, 0 to 60 °C with the standard NBR seal.

• Metal MP Series line: 1.0 MPa rated at 20 °C with metal bodies up to 1.6 MPa, -20 to +80 °C with NBR, up to +120 °C with the FKM seal option, and vacuum service to about -100 kPa.

The most expensive listing error we see is quiet: a distributor quotes a plastic fitting into a 90 °C compressor-room ambient, the seal softens, the line weeps, and the blame lands on the brand. Put the PSI and temperature rating on the bin. Train the counter staff to ask about ambient temperature, not just tube size.

Check 3: Compare the Three Lines Side by Side

Keep this table next to your price list. It turns the "which one do I quote" phone call into a ten-second answer.

Check 4: Trim the SKU Count With Cross-References

Both lines from Reayon Pneumatic use the same stainless steel grip ring, O-ring and collet inside. Only the body material changes. That means you can cross-reference by tube OD and thread, not by series, and stock each environment's line only where it is needed.

• Cover the tube range once: metric OD 3 mm to 16 mm and inch OD 1/8" to 1/2" spans almost every reorder we see.

• Lead with straight connectors, elbows and tee unions. Those three body styles carry most day-to-day volume.

• Add the metal line selectively in the sizes your harsh-environment accounts reorder, instead of duplicating every body style in both materials.

A focused starter set of 20 to 30 SKUs covers the majority of reorder volume. Widen the range after the fast movers show themselves, not before.

Check 5: Price the Risk, Not Just the Piece

The unit price gap between lines is easy to see on a quote sheet. The risk gap is what actually costs money:

• A plastic fitting cracked by a wrench knock means a stopped machine and a warranty conversation.

• A bare brass fitting that tarnished in a humid plant means a "quality" complaint, even when the seal is fine.

• A nickel-plated brass fitting costs more per piece but generates the fewest callbacks across the three lines.

For a distributor, one returned overseas shipment can erase the margin on an entire pallet of the cheapest option. Price each line with its callback history attached, and the shelf decision usually makes itself.

Check 6: Ask These Questions Before Your First Order

Five questions to a supplier, asked once, prevent most first-order mistakes:

1. Which threads dominate your customer base? NPT for the Americas, BSPP and BSPT for Europe and Asia. Order the mix, not the full range.

2. What seal do your customers need? NBR as standard, FKM where heat or chemicals call for it.

3. What are the MOQ and the mixed-part packing rules? Box-level mixing keeps your starter set small.

4. Is every fitting leak-tested? Ours are 100 percent air-leak and pressure-tested before shipping, and you should accept nothing less from any line you list.

5. Can the supplier label and pack under your own brand? OEM packaging turns a generic shelf line into your house brand.

How Reayon Pneumatic Supports Distributor Stock Decisions

Reayon Pneumatic manufactures both the plastic push-fit range and the nickel-plated brass MP Series in its own factory, at over 3,000,000 pieces per month. One source covers both lines, so material lots, thread tolerances and test records stay consistent, and OEM packaging is available when you want the range under your own label. See the plastic push-fit fitting guide and the MP Series metal connector guide for line-level detail, or browse the push-fit product page for body styles. If thread calls keep tripping up your counter staff, our thread identification guide is written for exactly that.

Frequently Asked Questions

Can I swap plastic push-in fittings for metal ones one-for-one?

Mechanically yes. Both lines use the same stainless steel grip ring and NBR O-ring, so a metal fitting accepts the same PU, PA or PE tube by outer diameter. The limits are environmental: metal costs more and weighs more, while plastic stops at about 60 °C. Swap to metal when heat, oil splash, vibration or panel loads are present, not by default.

What pressure and temperature can plastic push-in fittings handle?

Standard PBT and POM plastic push-in fittings are rated 0 to 150 PSI (0 to 1.0 MPa) and 0 to 60 °C with an NBR seal. Those numbers cover most room-temperature automation air circuits. Above that envelope, move the application to a nickel-plated brass body, optionally with an FKM seal rated to 120 °C.

Why pay more for nickel-plated brass instead of bare brass?

The pressure and temperature ratings are the same. The plating is what you are buying: a nickel layer stops brass from tarnishing in humid or salty air, resists thread galling during repeated assembly, and keeps a clean finish on visible panels. Bare brass works in dry indoor air but drives appearance complaints and re-taping callbacks in wet environments.

Can push-in fittings run on vacuum lines?

Yes. Push-in fittings hold vacuum to about -100 kPa when the tube is cut square and pushed fully past the grip ring. For vacuum service, verify the tube cannot pull out under load and avoid side loading at the port.

Which push-in fitting SKUs should a distributor list first?

Start with straight connectors, elbows and tee unions in the fastest tube sizes, usually 6 mm, 8 mm and 1/4" or 3/8", then add threads to match the region: NPT for the Americas, BSPP and BSPT for Europe and Asia. A focused starter set of 20 to 30 SKUs normally covers most reorder volume before you widen the range.

Stock the Right Lines, Skip the Wrong Ones

Send us your customer mix, tube sizes and annual volume. Reayon Pneumatic will propose a starter set across both lines, quote factory-direct, and ship samples for bench testing before you commit shelf space. Reach the team through our contact page.
