The 0.35 mm Gap: Why Metric and Inch Pneumatic Tube Sizes Are Not Interchangeable

A purchase order that lists only "6 mm tube" and a warehouse that ships 1/4 inch tube looks like a rounding error. It is not. Metric and inch pneumatic tube sizes seal on different outside diameters, and the collet inside a push-in fitting is sized for one of them. At Reayon Pneumatic we see this mismatch cause returns, line-down calls and emergency air freight every quarter. This guide gives sourcing managers the exact OD numbers, the conversion table, and the purchase-order language that prevents the problem.

Why Do Metric and Inch Pneumatic Tube Sizes Look Interchangeable?

Catalogues list them side by side. A plastic push-in fitting page shows "tube 3 mm–16 mm, 1/8"–1/2"" in one breath. To a buyer translating between a European drawing and an American spares list, that looks like one range with two labels. It is not.

The confusion comes from nominal sizing. "6 mm" and "1/4 inch" are both popular sizes for the same kind of small-bore pneumatic line. They fit the same valves, the same cylinders and the same machines. But the fitting that grips a 6 mm tube has a different collet bore, grip-ring pitch and O-ring seat from the fitting that grips a 1/4 inch tube. The tube is what changes.

How Close Is Too Close? The Real OD Numbers

Push-in fittings seal on the tube outside diameter, not the thread size and not the inside diameter. Here is how the common metric and inch ODs actually compare.

The 6 mm / 1/4" pair is the most expensive mistake. A 0.35 mm difference sounds tiny, but a standard pneumatic tube tolerance is about ±0.1 mm and a collet tolerance is even tighter. The two sizes live in different tolerance bands.

What Happens If I Force a Metric Tube Into an Inch Push-In Fitting?

The failure depends on which direction the mismatch goes.

• Metric tube in an inch collet. The tube is too small. The stainless steel grip ring cannot bite the wall deeply enough. Under pressure the tube creeps forward, the O-ring loses compression, and the joint hisses. Vibration or a slight side load makes it pull out completely.

• Inch tube in a metric collet. The tube is too large. It will not push past the collet far enough to seat the O-ring at the bottom of the port. The user feels resistance and assumes it is tight, but the seal never forms. The line leaks from the first cycle.

• Nominal matches but tolerance stacks. Even the 4 mm / 5/32" pair can fail if one tube is at the high end of its tolerance and the other collet is at the low end. That is why "close" is not a specification.

None of these failures look like a quality problem at first. They look like a bad fitting. The real cause is a size mismatch that was never checked.

Can One Supplier Cover Both Metric and Inch Sizes From the Same Mould?

No. The body mould might look the same, but the collet, grip ring and tube-seat dimensions are different. A 6 mm collet and a 1/4" collet are separate parts with separate tooling. A factory that claims one fitting covers both is either using a loose collet that grips neither size well, or it is relabeling stock without testing.

For a sourcing manager, this matters for three reasons:

• MOQ. Each size family has its own MOQ. Reayon Pneumatic can mix box-level packing to keep starter sets small, but the collet itself is still a separate line item.

• Lead time. If a factory only keeps metric collets in stock, an inch order waits for a tool change or a sub-supplier batch.

• Traceability. The part number must encode the tube size and unit system. A single "universal" code hides what you are actually buying.

How Should a Sourcing Manager Write the Tube OD on a Purchase Order?

Vague language is the enemy. These phrases have all caused returns:

• "6 mm or 1/4 inch"

• "Same as 1/4 inch"

• "About 6 mm"

• "Metric equivalent of 1/4 inch"

Use this format instead:

1. Tube OD + unit system: "8 mm OD tube for metric push-in fitting" or "1/4 inch OD tube for inch push-in fitting".

2. Fitting model: "PC6-01" or "PC1/4-N01". The model code itself should encode the size.

3. Tolerance standard: If the application is critical, add "Tube OD per ISO 14731" or "per SAE J844".

4. Approved sample reference: "As per sealed sample REF-2026-10-12".

One extra line on the PO costs nothing. One mixed shipment costs the margin on the whole order.

Does Reayon Pneumatic Stock Both Metric and Inch Tube-Compatible Fittings?

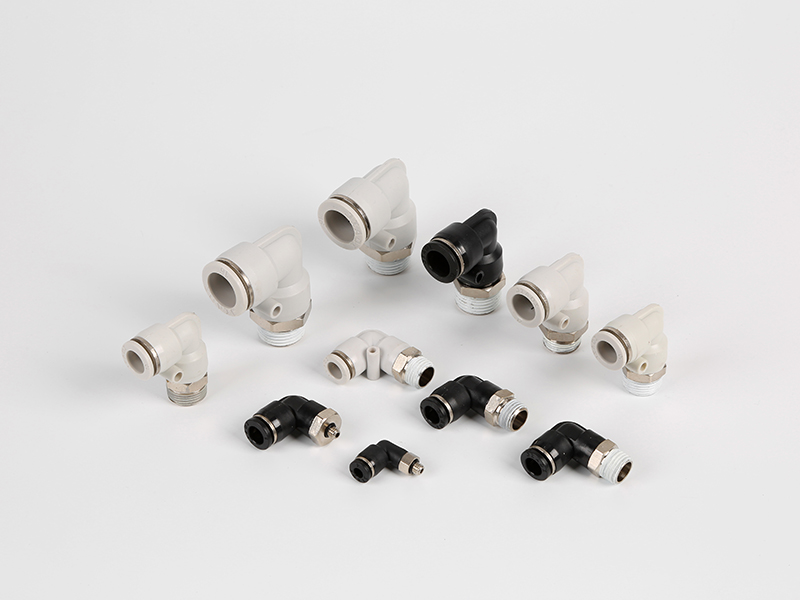

Yes. Both the PV plastic push-fit range and the MP Series nickel-plated brass range are available with metric collets from 3 mm to 16 mm and inch collets from 1/8" to 1/2". The internal grip-ring and O-ring design is the same; only the collet bore and the body marking change. For tubing options, see the polyurethane tube and nylon tube pages, or read the guide on choosing fittings for PU and nylon tubing.

How Do I Keep SKU Count Low Without Mixing Sizes?

A distributor does not need to duplicate every body style in both systems. Start with the system your customers actually use:

• Europe and most of Asia: lead with metric OD and BSPP/BSPT threads.

• North America: lead with inch OD and NPT threads.

• Mixed-machine aftermarket: stock a small cross-reference kit with the five most common sizes, clearly labeled by OD and unit system.

Do not try to make one fitting serve both. It will serve neither. A focused catalogue with correct part numbers beats a wide catalogue with hidden mismatches.

Frequently Asked Questions

Can I use a 6 mm tube in a 1/4 inch push-in fitting?

No. 6 mm tube has an outside diameter of 0.236 inch, while 1/4 inch tube is 0.250 inch. The 0.35 mm gap is larger than the collet tolerance on a standard push-in fitting. A 6 mm tube in a 1/4 inch collet will not grip reliably and will leak or pull out under pressure.

Are 4 mm and 5/32 inch tubes interchangeable?

They are close enough to look the same, but they are not guaranteed interchangeable. 4 mm is 0.157 inch and 5/32 inch is 0.156 inch, only 0.03 mm apart. Some fittings will grip both, others will not, depending on tube tolerance, collet tolerance and seal design. Always specify the size your fitting is marked for and test samples before production.

Why do pneumatic fittings seal on outside diameter instead of inside diameter?

Push-in fittings use a collet and stainless steel grip ring that bite the tube wall from the outside. The O-ring seals against the outside diameter at the bottom of the port. Inside diameter only affects air flow, not the mechanical connection or the seal.

Can I order one fitting series in both metric and inch sizes?

Yes. Reayon Pneumatic supplies both the plastic PV push-fit range and the MP Series nickel-plated brass range with metric collets from 3 mm to 16 mm and inch collets from 1/8 inch to 1/2 inch. They are separate part numbers with different collet bores, not the same fitting with two labels.

What is the safest way to avoid an OD mismatch in an export order?

Ask for the tube outside diameter, the unit system and the fitting model in writing. Do not accept descriptions like "about 6 mm" or "same as 1/4 inch". Bench-test three samples before approving the first shipment, and keep the approved sample sealed with the purchase order.

Get Both Size Ranges From One Factory

Send Reayon Pneumatic your customer region mix, target tube sizes and annual volume. We will propose a metric or inch starter set, quote factory-direct pricing, and ship samples for bench testing before you commit to a full order. Reach the team through our contact page.
