The box lands on your dock while a machine is down, and the decision is binary: fit it or send it back. There is no middle ground worth having. Most maintenance teams judge a carton of push-in fittings by shaking one and looking at the label. That is how a marginal batch reaches the line and turns into a slow leak you chase for weeks. Reayon Pneumatic ships push-in fittings to maintenance teams like yours, and this article lays out the fixed routine for pneumatic push-in fitting inspection — six steps, always in the same order, with thresholds you can defend in writing.
Why the Sequence Is Fixed
Each step only makes sense if the one before it passed. There is no point leak-testing a fitting whose thread marking does not match your order, and there is no point cycle-testing a fitting that already fails the hand grip test. The routine runs from cheapest to most expensive: paperwork, eyes, one hand, air, cycles, verdict. A full pass on a sample of three fittings takes about twenty minutes. That is less downtime than one bad fitting causes in a week of weeping joints.
Sample rule: pull three fittings at random from each batch, or one per box for large orders. Never inspect only the fitting on top — that is the one the packer checked too.
Step 1: Match the Markings Against the Order
Before anything touches a tube, read the body. Check four things against the purchase order:
Tube outside diameter and unit system. A 6 mm collet on an order for 1/4 in. is a reject even though the numbers look close. The 0.35 mm gap between nominal inch and metric sizes is enough to leak or blow off.
Thread family and size. BSPP, BSPT, NPT and metric threads arrive looking alike. Confirm the family stamped or printed on the body, not just the bag label.
Body material. Plastic where you ordered nickel-plated brass — or the reverse — changes where the fitting is allowed to live on the machine.
Quantity and model code. A short box is a claim you can only make before the seals are broken.
Any mismatch here ends the inspection. Photograph the marking, note the batch number, and start the return while the packaging is still intact.
Step 2: Read the Body — Five Visual Reject Signals
Good fittings look finished. Under a bench lamp or a loupe, check the three sample fittings for these signals:
Cracks or gates marks on plastic bodies, especially around the collet collar where moulding stress concentrates.
Plating defects on brass bodies: bare copper spots, blisters, or flakes in the pocket. Plating is the only thing standing between the brass and your washdown fluid.
Collet fingers. Look into the bore. The grip fingers should be even and springy. One bent finger means intermittent grip — the worst kind of fault.
Release button or ring. Missing or stuck release parts mean you cannot disconnect the tube without cutting it.
Thread condition. Nicks, dwell chips or cutting oil dried inside the threads will fight your thread sealant and leak later.
One defective fitting out of three samples means inspect the whole batch. Three clean samples move you to the hand test.
Step 3: The Hand Test — Insert, Tug, Release
Take a fresh, square-cut length of the correct tube and work each sample fitting by hand:
Insert. Push the tube in hard with a slight twist. It should bottom out with a definite click, not a soft slide. Mark the insertion depth on the tube first so you can confirm full seating.
Tug. Pull the tube firmly once, by hand. A healthy collet locks it. If the tube creeps out or releases under a firm hand pull, the grip is defective — reject.
Release. Press the release button or ring and pull the tube out. It should come free with light pressure and leave a clean, circular bite mark on the tube.
Re-insert. Push it back in and tug again. The second grip should feel the same as the first.
Also inspect the tube end after the first pull. Scratches inside the grip zone from a bad cut, or a ragged, off-square cut, will leak no matter how good the fitting is. Most mystery leaks on push-in lines trace back to tube prep, not the fitting.
Step 4: The Five-Minute Leak Test
Assemble the three samples with the tube they will actually run — same OD, same material — and pressurise to the branch working pressure. For a typical shop-air line that is around 90 PSI, comfortably inside the 0–150 PSI rating of standard push-in fittings. Then:
Soap every joint: fitting-to-tube and fitting-to-thread.
Hold five minutes. Zero bubbles is the pass mark. A bubble every ten seconds is a reject, not a watch-and-wait.
Wiggle the tube once at mid-hold and re-soap. A joint that only leaks after movement is a collet fault.
Remember the temperature rule: ratings apply at room temperature. A line running above about 60 °C needs derating and a different material choice, so testing hot branches at room temperature can hide a fault. Test at conditions that match the real branch.
Step 5: The Cycle Test for Fittings You Reconnect
Only the fittings that get disturbed in service need this step: operator stations, points near moving parts, anything a technician opens weekly. Run 100 insertion and removal cycles on the samples — insert, tug, release, repeat — then finish with the leak test from Step 4 again.
The pass mark is the same grip on cycle 100 as on cycle 1, and a dry soap test at the end. If the batch is destined for static cabinet branches that will never be opened, skip this step and say so on the record. Cycle testing static fittings wastes time and tells you nothing.
Step 6: The Verdict — Accept, Downgrade, or Reject
Write the result down. A verdict that lives in someone's memory is not a verdict. Use these lines:
Result
Condition
Action
Accept
All six steps clean on all samples
Book into stores, note batch number and date
Downgrade
Steps 1–4 pass, but the batch is short or the model differs slightly from the PO
Use only in the approved locations, order the exact model for the rest
Reject
Any marking mismatch, any visual defect, any creep under tug, any bubble
Quarantine, photograph, claim against the batch number
The downgrade line exists for real life, but it is narrow on purpose. A fitting you "make work" outside its intended zone — plastic where the tube flexes all day, brass without plating in a washdown cell — becomes next quarter's leak report.
When a Batch Fails: Sourcing Without Stopping the Line
A rejected batch and a stopped machine are two different emergencies. Handle them in this order: quarantine the batch so nobody borrows from it, then check stores for a previous accepted batch of the same model, then call the supplier with the batch number and photographs. This is why the routine records batch numbers even on good deliveries — the claim conversation takes minutes instead of days.
If the failed batch came from a new supplier, ask for factory test data before the replacement ships: leak test results and cycle counts for the model in question. Reayon Pneumatic supplies that data sheet with sample fittings on request, so your next incoming check starts from evidence instead of trust.
What Leaves the Factory Already Checked — and How to Get Samples

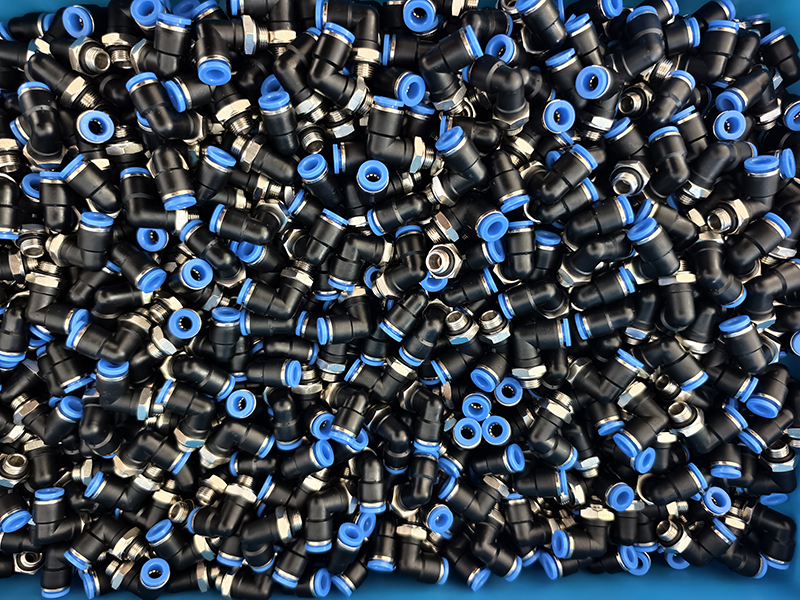

Every batch that ships from Reayon Pneumatic is leak-tested at the factory, and the push-in ranges — from the plastic one-touch series to the MP Series nickel-plated brass fittings — carry the same 0–150 PSI working range and the same collet design, so one inspection routine covers your whole cabinet. Pair the fittings with matched PU tubing so the grip zone and the tube surface are tested as one system, browse the full range in the product catalogue, or reach the team through the contact page to get test samples with your next order.
Frequently Asked Questions
What pressure should I use for the incoming leak test on push-in fittings?
Test at the real working pressure of the branch, not above the fitting rating. Standard push-in fittings are rated for 0 to 150 PSI (up to 1.0 MPa) at room temperature, so a typical shop-air branch at around 90 PSI is a valid test point. Hold the joint for five minutes under soap solution and reject the fitting if any bubble forms. Derate for lines that run hot, above about 60 degrees C.
How many insertion cycles should a push-in fitting survive?
For fittings that get disconnected in service, such as operator stations and points near moving parts, require at least 100 insertion and removal cycles followed by a clean leak test. For static branches that are never disturbed, cycle life matters far less than the first-time grip and seal.
What are the most common reasons to reject a push-in fitting on arrival?
The recurring reject signals are a cracked or visibly stressed body, plating that bubbles or flakes off brass fittings, a collet with bent or missing grip fingers, a missing release button, damaged or dirty threads, and markings that do not match the order. Any one of these is enough to send the batch back.
Can I reuse a push-in fitting after pulling the tube out?
Yes, if the collet still grips and the release button still works. Cut the tube end square again, since the first insertion can leave a ring mark inside the sealing zone. A fitting that will not re-grip a fresh tube end goes in the bin. Reayon Pneumatic designs its plastic and nickel-plated brass push-in ranges for repeated reconnection on service points.
Should I inspect the tubing as well as the fittings?
Always. Most slow leaks trace back to tube preparation, not the fitting. Check the tube outside diameter against the collet size, reject tube with scratches inside the grip zone, and insist on square cuts with no burrs. A perfect fitting on a scored tube will still weep.
