Pneumatic Thread Identification: BSPP vs BSPT vs NPT vs Metric — How to Order the Right Air Fitting

More pneumatic returns start with a thread mismatch than with a defective fitting. BSP and NPT look alike, and in one popular size they even share a pitch. This guide shows how to tell the four families apart, with the angle, pitch and taper data you need before placing an order.

The Cost of Guessing a Pneumatic Thread

A thread mismatch does three expensive things. It delays commissioning while replacement fittings ship. It can crack an aluminium manifold when someone forces the wrong taper into a port. And it produces a joint that holds air for a week, then starts hissing on a production line.

The mismatch is easy to make because the threads are genuinely close. In the 1/2" size, NPT and BSP both run 14 threads per inch. They screw together for several turns before they bind. That false fit is the whole problem.

The Four Thread Families You Will Meet

NPT — tapered, 60°

American standard, ASME B1.20.1. The thread both tapers and wedges, so it seals along the flanks with the help of thread sealant. Dominant on North American machinery.

BSPT — tapered, 55°

British Standard Pipe Taper, ISO 7-1, written as R externally and Rc internally. Tapered like NPT but with a 55° flank angle and rounded crests.

BSPP — parallel, 55°

British Standard Pipe Parallel, ISO 228-1, written as G followed by the nominal size. The thread does not seal. Sealing comes from a bonded washer, a sealing ring or an O-ring against the port face.

Metric — parallel, 60°

ISO metric coarse and fine threads per ISO 261 and ISO 724. Widely used on European pneumatic valves and cylinders, almost always with a sealing washer or O-ring.

NPT vs BSPP vs BSPT vs Metric: Comparison Table

Pitch and Angle Chart for Common Sizes

The 1/2" row is the one to memorise. Two identical pitches, two different angles, two incompatible parts.

How to Identify an Unknown Port in 60 Seconds

1. Check for taper. Measure the outside diameter at the first thread and again near the fourth. Growth means tapered — NPT or BSPT. No growth means parallel — BSPP or metric.

2. Put a gauge on the flank. A 55° blade fits BSPT or BSPP. A 60° blade fits NPT or metric. Do not trust your eye at this step.

3. Count threads per inch. Use the pitch chart above. This splits NPT from metric on parallel ports, and confirms your taper reading.

4. Look at what was sealing it. A bonded washer or O-ring in the box means the thread is parallel. Old sealant paste on the threads means tapered.

5. Confirm with the machine manual. Thread identification is a check, not proof. Always verify against the drawing before ordering in volume.

Matching the Thread to Your Air Line Duty

Pneumatic lines run at far lower pressures than hydraulic circuits, but the selection logic still matters. Across the range, plastic pneumatic push-in fittings are rated at 0–150 PSI operating pressure and 0–60 °C, for air service. Recommended tubing materials are polyurethane, nylon, polyethylene and polypropylene.

Choose the thread family from the equipment you are connecting to, then choose the fitting body from the environment:

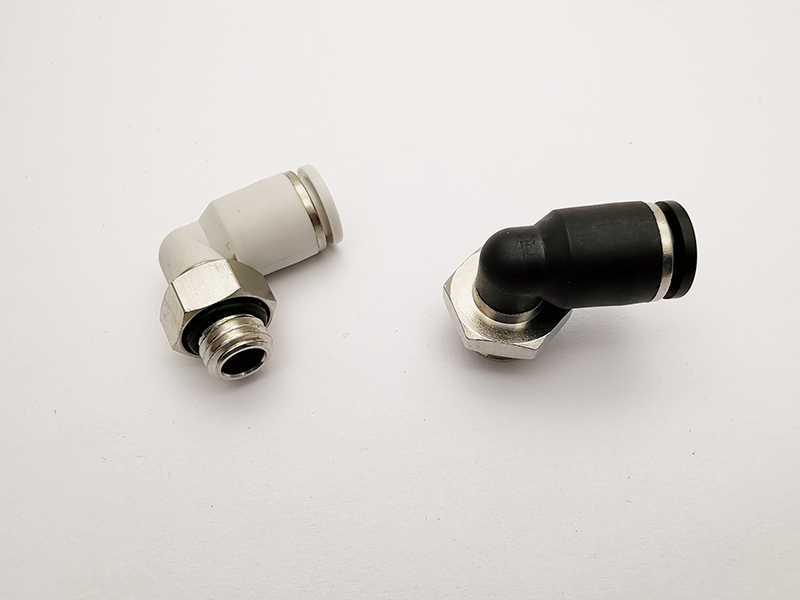

• Confined space, frequent changes. Plastic push-in range, with an elliptical release sleeve for tight panels.

• Higher duty or metal enclosure. Nickel-plated brass push-in fittings.

• Corrosive washdown areas. Stainless or nickel-plated bodies with FKM seals.

• Mixed standards on one machine. Order each thread family separately and label the bags. Do not build a mixed-thread spares kit.

Common Ordering Mistakes

• Ordering by nominal size only. 1/4" NPT and 1/4" BSPP are different parts. Always name the standard.

• Mixing tube sizes with thread sizes. A fitting has two numbers: tube outside diameter and thread size. Quote both.

• Reusing bonded seals. The washer does the sealing on a parallel thread. Reuse distorts it.

• Skipping the torque step on metal ports. Hand-tight plus no defined turn leaves weeping joints that show up later.

Why Specify Reayon Pneumatic

Reayon Pneumatic builds its push-in and metal fitting ranges with all four thread families available — BSPP, BSPT, NPT and metric — across tube sizes from 3 mm to 16 mm and 1/8" to 1/2". That means one supplier covers an export machine sold into three regions.

• Full thread coverage, including metric, in both plastic and nickel-plated brass bodies.

• Fittings delivered with gasket, O-ring and thread treatment already applied.

• 100% testing before delivery, with export packing for container shipment.

• Customised sizes quoted from drawings or samples.

Frequently Asked Questions

Can I screw an NPT fitting into a BSP port?

No. In the 1/2" size both run 14 threads per inch, so they feel like they fit. The 60° versus 55° angle means they bind and leak or crack the port.

What is the difference between BSPP and BSPT?

BSPP is parallel (ISO 228-1, G thread) and seals with a washer or O-ring. BSPT is tapered (ISO 7-1, R thread) and seals on the thread with sealant.

How do I tell NPT from BSPT by eye?

Check the flank angle — 60° for NPT, 55° for BSPT. Use a gauge, then confirm with a drawing.

Which thread should I choose for a new compressed air line?

Match your existing equipment. BSPP is common in Europe and much of Asia, NPT dominates North America.

What pressure and temperature ratings apply?

Plastic push-in ranges are typically 0–150 PSI and 0–60 °C for air only. Check the specific series rating before specifying.
