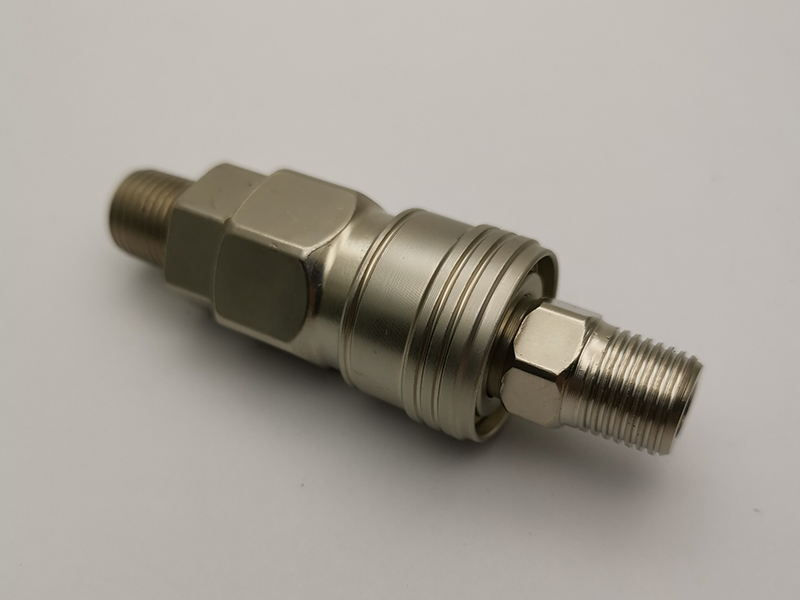

In the world of automation and industrial efficiency, every second counts. Downtime for tool changes or line reconfiguration is lost productivity. At the heart of a responsive pneumatic system lies a seemingly simple yet brilliantly engineered component: the pneumatic quick coupling. But how does it achieve that instantaneous, leak-proof connection with just a simple push? At Reayon Pneumatic, a trusted manufacturer of pneumatic components, we don't just make couplings—we master the precision engineering behind them. Let’s dive into the mechanics that make our quick-release couplings the reliable choice for industries worldwide.
The Core Principle: A Brilliant Mechanical Ballet
The magic of a quick coupling lies in a perfect balance of spring force and mechanical interlock. It performs a seamless, four-act play: The Ready State (Auto-Seal): When disconnected, a spring inside the female half (body) forcefully presses a poppet valve against its seat. An O-ring on the poppet creates a perfect seal, preventing any air leak—a critical feature for safety and energy savings.

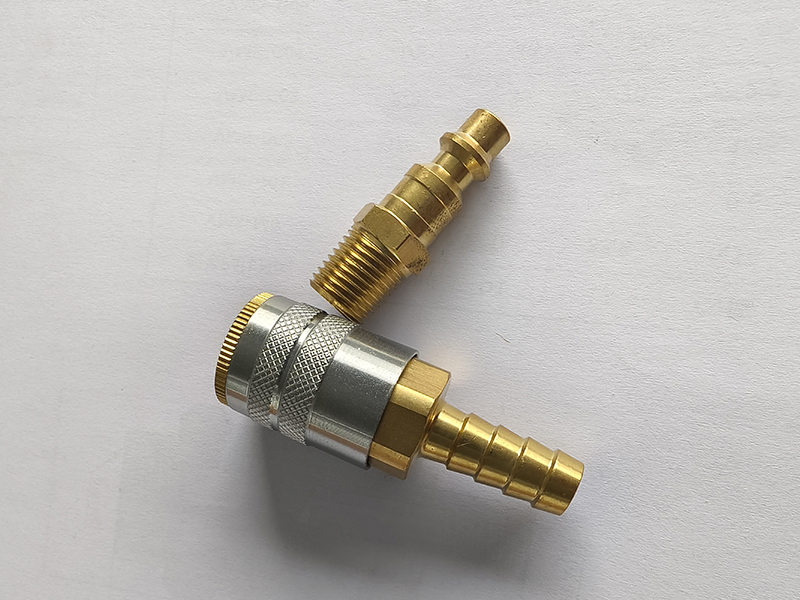

The Connection (Push-to-Connect):
As you push the male plug (stem) in, it contacts and pushes the poppet back, compressing the spring and opening the air passage.
At the precise moment of full insertion, locking steel balls housed in the body align with an annular groove on the male plug.
The sleeve (often spring-loaded itself) slides forward. Its internal ramp forces the balls inward, locking them securely into the groove on the male plug. This creates a solid mechanical lock. Air flows freely.
The Disconnection (Auto-Shutoff):
Simply pull back the sleeve. This releases the radial force on the locking balls.
The main spring behind the poppet reacts instantly, slamming the poppet forward to re-seal the orifice. This action also gives a slight ejecting force to the male plug, breaking the connection cleanly and with minimal air loss.
Engineered for Excellence: The Reayon Pneumatic Difference
As a precision manufacturer, we engineer every component for durability and performance: Precision-Formed Locking Balls/Cams: For a secure, vibration-resistant hold.Robust Poppet Valve & Spring System: Ensures consistent shutoff and long cycle life.High-Grade Seals (NBR/PU): Selected for wide temperature and media compatibility, guaranteeing a leak-free seal.Ergonomic Sleeve Design: For easy operation, even with gloves on.
Choosing the Right Type for Your Application
Not all connections are the same. Reayon Pneumatic offers couplings designed for specific needs: Plug-In, Both Sides Shut-off (Most Common): Seals both sides when disconnected. Ideal for general tool and machine connections. Our BSPP, BSPT, and NPT threaded series are industry favorites.Plug-In, Body Shut-off: Only the coupler side seals; the plug side exhausts. Perfect for safely depressurizing cylinders before disconnection.Plug-In, Flow: Allows flow from both ends when disconnected, used for special venting applications.
Pro-Tips for Optimal Performance
Clean Before Connecting: Wipe plugs and sockets to prevent seal damage from contaminants.
Push Straight and Fully: Ensure a positive "click" for a secure lock.
Use the Sleeve to Disconnect: Never pull the hose alone. Always retract the sleeve first.
Select the Correct Size: Match the coupling's flow capacity (orifice size) to your application to avoid pressure drop.
Why Choose Reayon Pneumatic as Your Coupling Manufacturer?Proven Reliability: Engineered for millions of cycles in demanding environments.Global Standards: Products conform to international specifications and thread standards.Full Range Solutions: From standard industrial couplings to specialized variants for high-flow or corrosive media.Manufacturing Expertise: In-house control over materials, machining, and quality assurance ensures consistent excellence.Upgrade your pneumatic lines with the speed and reliability of genuine Reayon Pneumatic quick couplings. Contact our technical support team today for a consultation or browse our comprehensive product catalog to find your perfect fit.
