Leaks are the silent killers of pneumatic efficiency. A single compromised fitting can lead to dropped pressure, spiking energy costs, erratic actuator movement, and costly downtime. For system designers and maintenance engineers, understanding how to verify a fitting's seal isn't just quality control—it's fundamental to operational reliability and profitability.

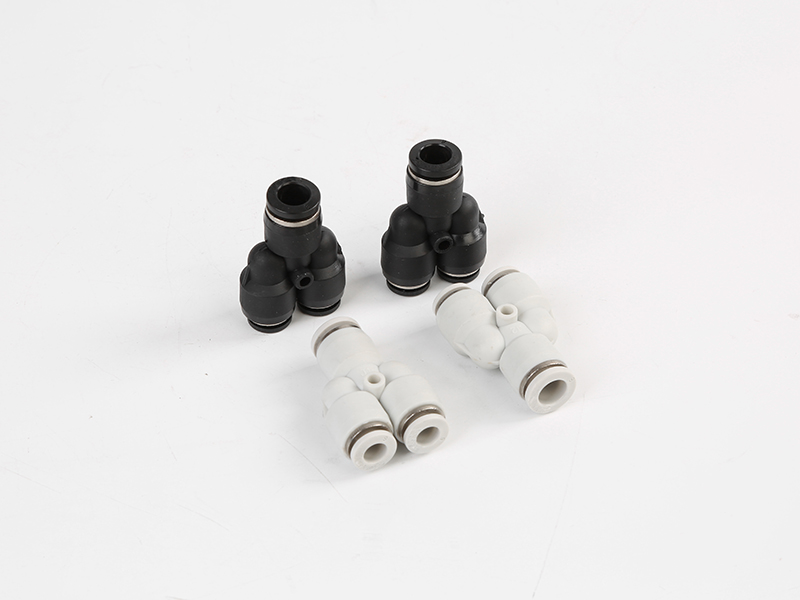

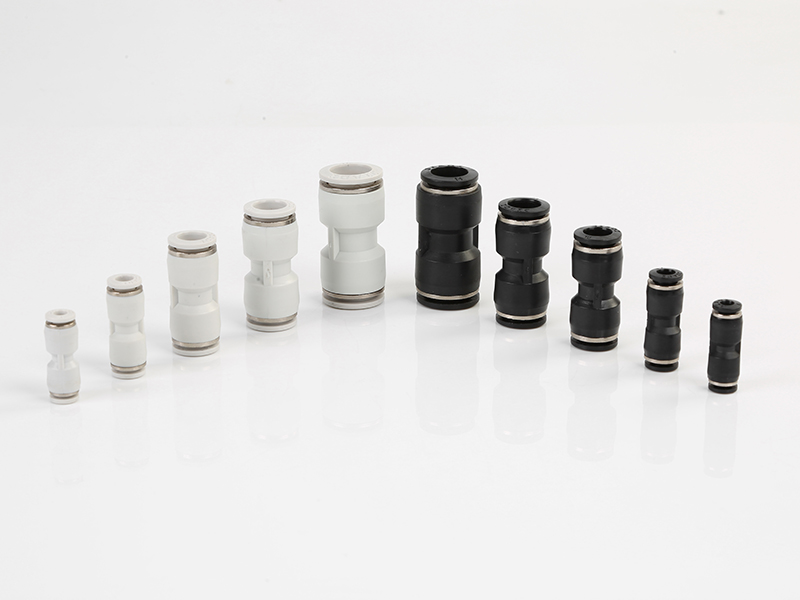

At REAYON PNEUMATIC, a leading manufacturer of precision fluid power components, we consider rigorous seal testing the non-negotiable foundation of our manufacturing process. Here’s a professional breakdown of the core methods and philosophies behind pneumatic fitting leak detection.
The Core Philosophy: What Are We Testing For?
Before applying any method, define the goal. Testing validates three pillars:
Leak Rate Integrity: Quantifying that leakage is below permissible thresholds (e.g., < 1x10⁻⁶ mbar·l/s).
Pressure Rating Assurance: The seal must hold from vacuum to at least 1.5x the rated working pressure.
Durability Under Stress: Performance must persist after repeated connect/disconnect cycles, temperature swings, and vibration.
These criteria are benchmarked against international standards like ISO, SAE, and our own, more stringent, internal specifications.
The REAYON Leak-Test Arsenal: From Basic to Gold-Standard
Detection methodologies range from simple shop-floor checks to lab-grade analysis. A robust quality program, like ours at REAYON PNEUMATIC, often employs a combination.
1. Pressure Decay / Hold Test (The Industry Workhorse)
This is the most common, straightforward method.
Process: A test circuit containing the fitting is pressurized, isolated, and monitored. The pressure drop (ΔP) over a set time is measured.
REAYON Insight: While cost-effective, its accuracy is sensitive to temperature changes. Our production lines use thermally stabilized environments for reliable results.
2. Bubble Immersion / Soap Solution Test (The Visual Locator)
A brilliantly simple, qualitative method for pinpointing leaks.
Process: The pressurized assembly is immersed in water or brushed with a soap solution. A steady stream of bubbles reveals the leak source.
Pro Tip: Always dry components thoroughly after immersion to prevent corrosion—a step we never skip.
3. Differential Pressure / Mass Flow Test (The High-Precision Sentinel)
This is the method of choice for high-volume, high-reliability production.
Process: It compares the pressure or flow in a reference volume to the test volume containing the fitting. Any minute difference is a measured leak.
Why We Use It: It’s highly accurate, fast, and less susceptible to environmental noise, making it perfect for automated manufacturing QC stations.
4. Helium Mass Spectrometry Testing (The Unbeatable Benchmark)
For mission-critical applications where zero leakage is paramount, this is the ultimate test.
Process: The fitting is charged with helium tracer gas. A mass spectrometer sensor (either as a sniffer probe or in a vacuum chamber) detects infinitesimally small helium escapes.
The REAYON Standard: We employ this for validating new product designs, material certifications, and for aerospace/ semiconductor-grade product lines, ensuring leak rates as low as 10⁻⊃1;⊃2; mbar·l/s.
Decoding Failure: What a Leak is Trying to Tell You
A leak is a symptom. Pinpointing its location reveals the root cause:
Leak Location
Likely Culprit
Thread Interface
Incorrect torque, damaged threads, or improper sealant application.
Tube Ferrule/Crimp Zone
Tube not fully inserted, pre-swaging not performed, or out-of-spec tubing.
O-Ring/Seal Face
Incorrect O-ring size/material, seal damage during assembly, or poor surface finish on the groove.
As a manufacturer, we design to eliminate these failures. This means precision-machined threads, optimized ferrule geometries, and specifying compatible, high-durability seal materials.
The 5 Commandments of Effective Leak Testing
Calibrate & Qualify Your Test Circuit First. The test rig itself must be leak-tight.
Cleanliness is Paramount. Debris on sealing surfaces is a primary cause of failure.
Follow Installation Instructions Religiously. Proper insertion depth and torque are critical. We provide clear, precise guidelines with every product.
Control the Environment. Account for temperature, especially in pressure decay tests.
Document Everything. Traceable records—pressure, time, result, operator—are the backbone of a quality system.
The Bottom Line:
Selecting the right test method depends on your required sensitivity, throughput, and budget. From the workshop floor to the advanced lab, the principle remains: trust, but verify.
At REAYON PNEUMATIC, we don't just manufacture fittings; we engineer sealed, reliable connections. Our commitment to exhaustive testing is your assurance of peak system performance and longevity.
Struggling with persistent leaks or designing a new system? Let's discuss how our precision-engineered fittings and application expertise can seal the deal on your next project.
