In pneumatic systems, reliability is non-negotiable. A failure isn't just downtime; it's a safety event. At the heart of this reliability are the components you might think about the least: your pneumatic fittings and couplings.
Here’s the critical truth many overlook: The safety risk of a pneumatic fitting is directly proportional to its cycle frequency. High-frequency use—constant connect/disconnect actions or rapid pressure cycling—acts as an accelerator, dramatically shortening the component's safe service life and increasing the odds of a dangerous failure.
How High-Frequency Use Compromises Your System
Think of frequency as a force multiplier for time. What takes years to occur in a static system can happen in months or weeks under constant, rapid use.
Seal Degradation: O-rings and gaskets harden, crack, and lose elasticity faster.
Metal Fatigue: The locking mechanisms and internal components of couplings develop micro-fractures, leading to potential catastrophic disconnection.
Connection Loosening: Vibration and pulse waves can cause threaded fittings to back off and push-to-connect locks to weaken.
The Hierarchy of Risk: From Leak to "Whip"
Understanding the failure modes is key to prevention. The risks escalate with frequency and pressure.
RISK LEVEL
FAILURE MODE
CONSEQUENCE
THE FREQUENCY LINK
CATASTROPHIC
Instantaneous Burst or Whip
A hose or fitting under pressure (often >7 bar) ruptures, causing the hose to whip uncontrollably. This can cause severe injury or death.
Extremely High. Metal fatigue from constant stress cycles is a primary cause.
SEVERE
Unexpected, Rapid Disconnection
Sudden loss of air causes tool or clamping failure, leading to potential secondary mechanical accidents (e.g., ejected workpieces).
High. Directly linked to wear on push-to-connect lock mechanisms from frequent mating cycles.
COSTLY
Chronic, Gradual Leakage
Wasted energy, reduced system pressure, and increased compressor load cycles—driving up operational expenses silently.
High. The most common result of seal wear, accelerated by use frequency.
The Manufacturer's Playbook: Mitigating Risk in High-Cycle Applications
At REAYON PNEUMATIC, as a leading manufacturer of pneumatic components, we design and advocate for a proactive, not reactive, approach to safety. For high-frequency applications, the standard protocol is not enough.
1. Spec for the Worst Case, Not the Average.
Pressure Rating: Select fittings with a Maximum Working Pressure (MWP) at least 1.5 times your system's peak pressure.

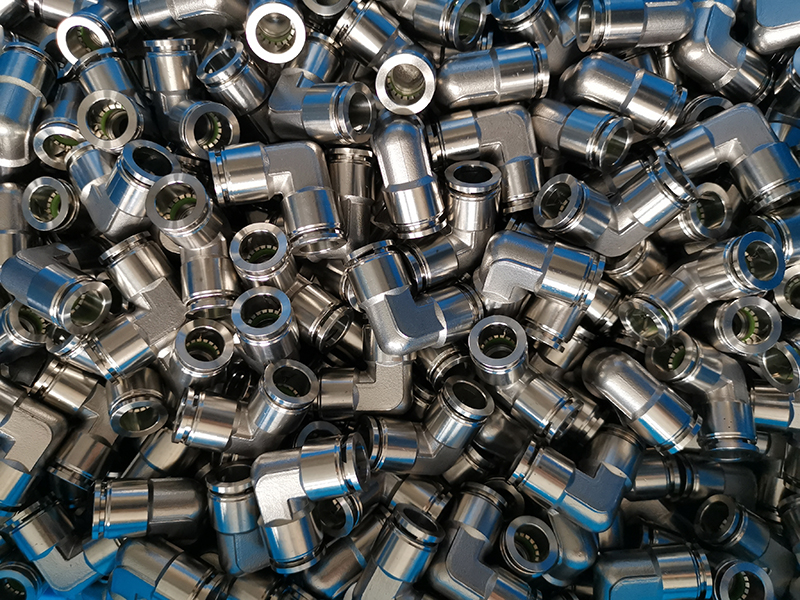

Material Science: For the most demanding environments, specify stainless steel fittings over brass for superior fatigue and corrosion resistance. Pair them with HNBR or FKM seals for longevity.
Locking Certainty: For any point requiring regular tool changes, locked push-to-connect fittings are mandatory to prevent accidental release.
2. Implement a Frequency-Based Maintenance Regimen.
A static annual check is insufficient for dynamic systems. Your inspection schedule must match the operational tempo.
Daily/Shift Check: Audible and visual inspection of high-cycle points for damage or oil seepage (a sign of leaking air).
Monthly/Quarterly Test: Conduct a systematic pressure decay test to quantify leakage. Sample and inspect seals from the highest-cycle couplers.
Preventive Replacement: Establish a calendar-based replacement program for seals and critical lock components in high-use areas— don’t wait for them to fail.
3. Build a Culture of Connector Safety.
Train Every User: Ensure all personnel understand the correct way to mate a quick-connect (push until the audible "click" and pull to test) and the lethal danger of a hose whip.
Map Your System: Maintain a simple log of critical fitting locations, their service dates, and cycle estimates.
Safety in high-frequency pneumatic applications isn't about luck; it's about physics, material science, and disciplined process. The risk is real, but with the correct components, informed practices, and a proactive mindset, it is entirely manageable.
As a professional pneumatic manufacturer, REAYON PNEUMATIC provides not just components, but integrated system reliability solutions. Need help specifying the right fittings or building a risk-based maintenance schedule for your high-cycle application?
