10 Must-Know Pneumatic Fitting Installation Techniques: A REAYON PNEUMATIC Guide for Reliable Systems
Views: 4 Author: Site Editor Publish Time: 2026-01-27 Origin: Site
At REAYON PNEUMATIC, a leading pneumatic components MANUFACTURER, we know that a high-performance system is built on flawless connections. Proper fitting installation isn't just a step—it's the foundation of efficiency, safety, and longevity. Avoid leaks, pressure drops, and downtime by mastering these 10 professional techniques.

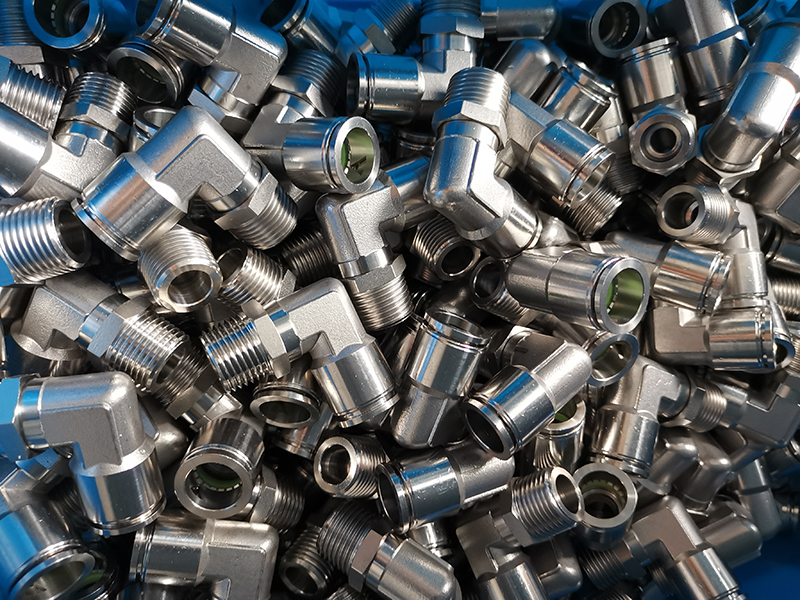

1. Select the Correct Fitting Type
Choose based on connection logic, not just shape. The right choice ensures optimal flow and seal.
Push-in (Quick Connect) Fittings: The standard for soft tubing (PU, Nylon). Ideal for tool and machine connectivity.
Threaded Fittings: Crucial to distinguish between:
Parallel Threads (e.g., G, BSPP): Seal via a washer or O-ring on the face.
Do not overtighten.
Tapered Threads (e.g., R, BSPT, NPT): Seal via thread interference.
Sealant is required.
Other Types: Use
Compression Fittings for metal tubing and
Flange Fittings for large, high-pressure lines.
Pro Tip from REAYON: Match the fitting not only to the tube but also to your system's pressure, flow, and environmental needs.
2. Clean Tube and Fitting Thoroughly
Contamination is the #1 enemy of pneumatic seals and components.
Tube End Preparation: Always use a
tube cutter for a perfectly square cut. Then,
deburr both the inside and outside edges meticulously. Any leftover plastic shavings will become destructive debris.
Fitting Check: Before assembly, visually inspect the fitting's internal seal (O-ring) for damage or dirt. A quick burst of clean, dry air can remove dust.
3. Ensure Precise Size Matching
A mismatch guarantees failure.
Push-in Fittings: Match the fitting size
exactly to the
tube's outer diameter (e.g., Ø6mm). Test-fit: the tube should insert about 5mm with consistent, light resistance.
Threaded Fittings: Verify both the
thread type/size (e.g., G1/8) and the
tube or port size. Mismatching parallel (G) and tapered (R) threads is a common source of leaks.
4. Apply the Correct Assembly Method
Different fittings demand different techniques.
Fitting Type
Correct Method
Push-in Fitting
1.
Mark insertion depth on the tube.
2.
Moisten the tube end with water only.
3.
Push straight in until the mark is flush.
Never twist the tube.
Parallel Thread Fitting
Hand-tighten, then use a wrench. Seal via the compressed face seal, not thread force.
Tapered Thread Fitting
Apply
pipe sealant or Teflon tape to the male threads, leaving the first thread clear. Hand-tighten, then wrench to proper tightness.
5. Use Sealant Appropriately – Know the Rules!
This is critical. Misapplied sealant causes more problems than it solves.
NEVER use sealant or oil on or near
push-in fittings. It damages O-rings and tubing.
ALWAYS use sealant on
tapered threads (R, NPT).
Use sparingly or not at all on parallel threads with a face seal. Sealant can contaminate the O-ring or washer.
6. Distribute Installation Force Evenly
Uneven force twists fittings and stresses connections.
Two-Wrench Technique: When tightening a threaded fitting, use one wrench to
hold the fitting body and the other to tighten the nut. This prevents torsional stress on the entire assembly.
Avoid Pipe Strain: Support long tubing runs with clamps. Never let the fitting bear the weight or pull of the tubing.
7. Ensure Correct Fitting Orientation
Direction matters for function and flow.
Flow Direction: Many fittings (check valves, flow controls) have an
arrow. Install it in the correct flow direction.
Push-in Sockets: The release collar must be accessible for future maintenance.
8. Inspect and Pressure-Test After Installation
Never skip the verification.
Visual/Tug Test: Ensure tubes are fully seated. Gently tug on each connection to confirm it's locked.
Soap Solution Test: The gold standard. Apply soapy water to
every new connection while the system is pressurized.
Any bubble formation indicates a leak.
Pressure Drop Test: Pressurize the system, isolate it, and monitor the gauge for an unexpected drop over time.
9. Perform Regular Inspection and Maintenance
Proactive care prevents failures.
Monthly/Quarterly: Conduct a visual inspection and a soap solution test on critical connections.
Annually: Check tubing for brittleness or wear, especially at the fitting neck. Replace worn O-rings in serviceable fittings.
10. Master the Correct Disassembly Method
Safe removal protects components and personnel.
STEP 1: DEPRESSURIZE THE SYSTEM COMPLETELY. This is non-negotiable.
Push-in Fittings:Firmly push the colored release collar toward the fitting, then pull the tube out. Do not pull without pushing the collar.
Threaded Fittings: Use the proper tools. If stuck, use a penetrating fluid, not excessive force.
Post-Removal: Always cut off the deformed end of the used tubing before re-installation to ensure a fresh, square seal.
Why REAYON PNEUMATIC Fittings are Engineered for Excellence
At
REAYON PNEUMATIC, we don't just manufacture components; we engineer reliability. Every fitting is precision-machined and rigorously tested to ensure:
Perfect dimensional consistency for leak-free connections.
Durable seals and materials for long service life.
User-centric design for easier, error-proof installation and maintenance.
Following these 10 techniques with
REAYON PNEUMATIC products guarantees a system built on a foundation of quality and expertise.
