REAYON PNEUMATIC Speed Control Valve

Product Overview

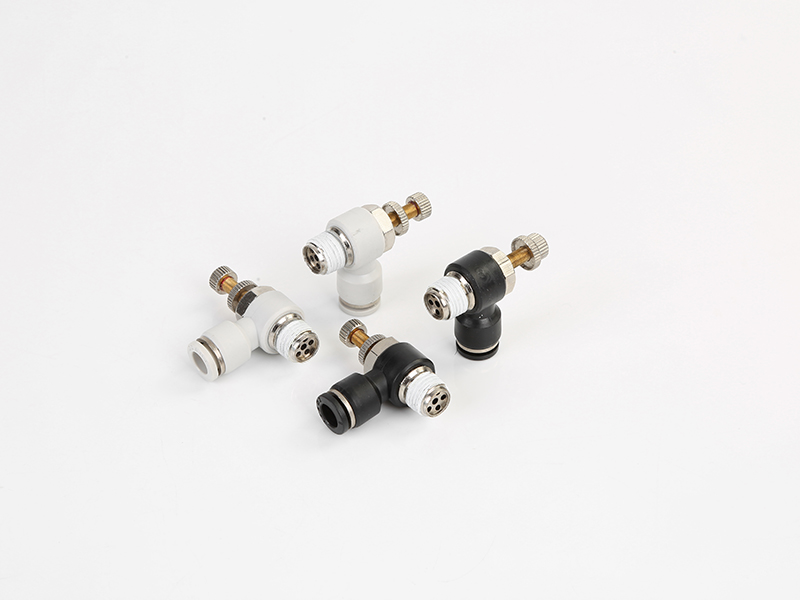

REAYON PNEUMATIC L-type push-to-connect speed control valves are designed to precisely regulate the speed of pneumatic cylinders by adjusting airflow. These one-way throttle valves provide reliable, smooth motion control, preventing sudden shocks and equipment damage in automated systems.

Key Features

• Adjustable Speed Control: The precision knurled knob allows fine-tuning of airflow to set cylinder speed exactly as needed, from slow, steady movement to faster cycles.

• Quick Connect Installation: Push-fit tube connection for fast, tool-free assembly and disassembly, reducing installation and maintenance time.

• Compact L-Shape Design: Space-saving right-angle body fits tight machine layouts, with a rotatable body to avoid interference with other components.

• Durable Construction: High-strength plastic body combined with nickel-plated metal parts ensures corrosion resistance and long service life.

• Leak-Proof Performance: Sealed design maintains stable air pressure (up to 1.0MPa) without air leaks, ensuring consistent operation.

Specifications

• Brand: REAYON PNEUMATIC

• Type: L-type one-way throttle valve / flow control valve

• Tube Sizes: 4mm, 6mm, 8mm, 10mm, 12mm，14mm,16mm (available)

  • Thread Sizes: M5, 1/8", 1/4", 3/8"，1/2” (available)

• Working Pressure: 0 – 1.0 MPa

• Working Temperature: 0 ~ 60°C

• Body Material: Engineering plastic

• Metal Parts: Nickel-plated brass / stainless steel

Applications

• Automated assembly lines

• Packaging machinery

• Printing equipment

• Woodworking machines

• Pneumatic clamps and fixtures

• Robotic pneumatic systems

• Any industrial setup requiring controlled cylinder movement

Quality & Service

All REAYON PNEUMATIC speed control valves undergo strict air leakage and performance testing before shipping. We offer:

• Bulk order support

• OEM/ODM customization

• Technical assistance for selection and installation

For inquiries, samples, or pricing, contact REAYON PNEUMATIC today!
