In the heart of pneumatic systems lies a seemingly small but critically important component — the locking snap ring. It directly determines the reliability and safety of tube connections. Faced with the choice between a monolithic design and a split design, how do you decide? This article provides an in-depth analysis of the advantages and disadvantages of each.

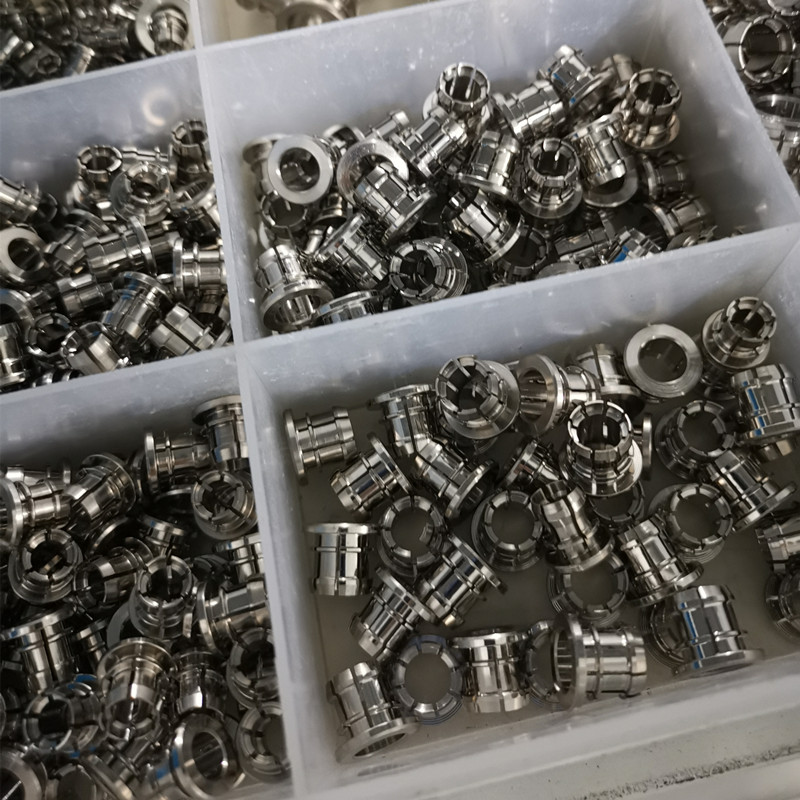

Monolithic Snap Ring Housing: The Perfect Blend of Efficiency and Reliability

• Ultimate Installation Simplicity, Maximized Efficiency: "Fool-proof" operation. Installers avoid the hassle of manually positioning and compressing the ring. The unit drops directly into the coupling body's groove, potentially reducing installation time by up to 70%. Ideal for automated production lines and large-scale projects.




• Prevents Loss: The snap ring is securely held within its housing, eliminating the risk of it being dropped or lost during storage, handling, or installation.




• Superior Stability and Consistency: The snap ring is pre-loaded optimally within the housing, ensuring uniform and consistent locking force after every installation. This greatly reduces quality variations caused by differences in installer technique.




• Error-Proofing, Reduced Failure Rate: Virtually eliminates the risk of potential leaks or tube blow-offs caused by improper installation of split rings (e.g., incomplete seating, incorrect orientation).

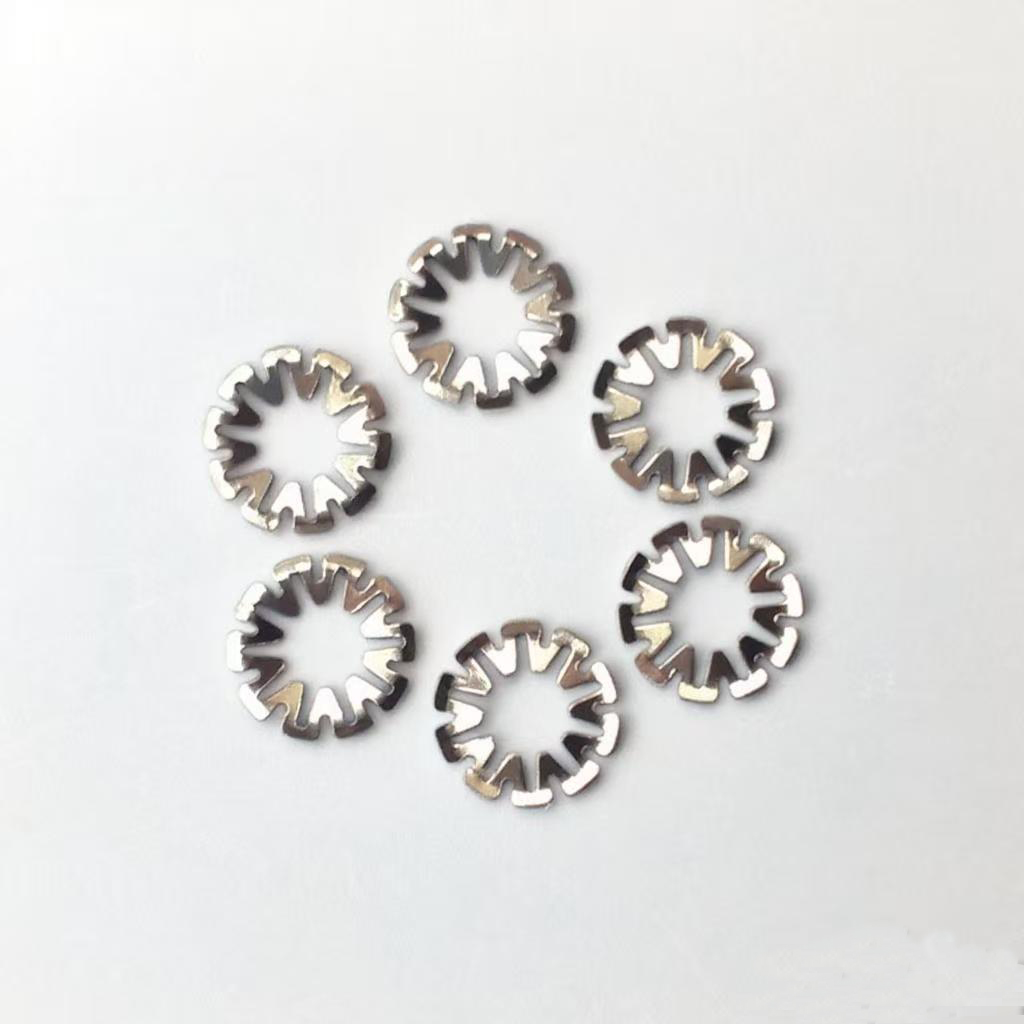

Split Snap Ring: The Traditional Choice for Flexibility and Cost

• Cost Advantage: Simpler construction, omitting the cost of the housing. Often has a more competitive unit price. Effective for controlling costs in highly price-sensitive, high-volume applications with low complexity.




• Maintenance Flexibility & Parts Commonality: During repair, only the snap ring (wear item) needs replacement. Many standard ring types are cross-brand compatible, offering greater flexibility in sourcing spare parts.




• High Compatibility: Some special designs or older coupling models might only be available with a split ring option.




Core Comparison Summary & Selection Guide

Our Professional Recommendation
