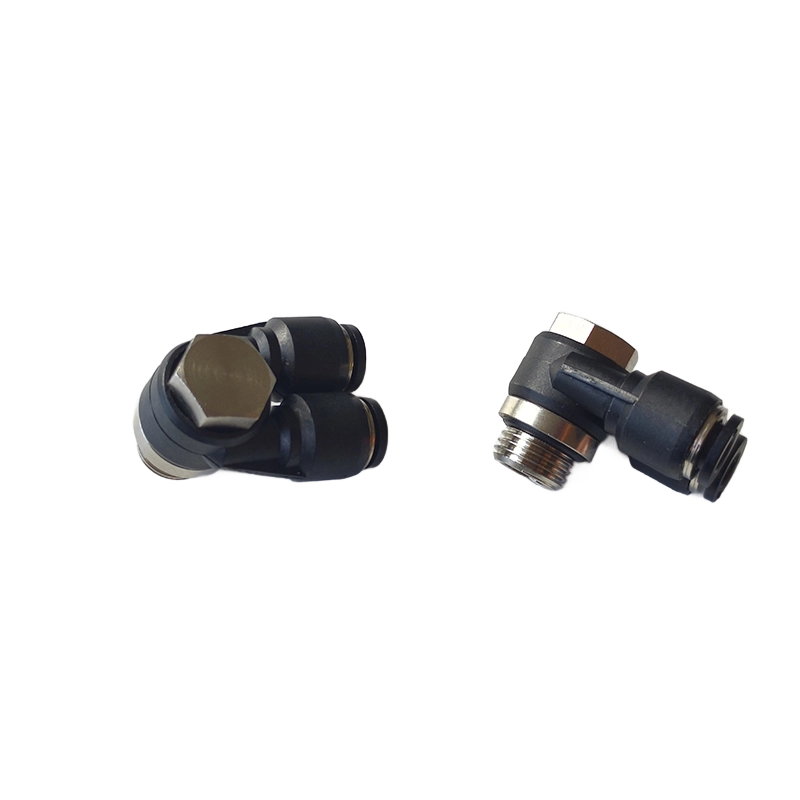

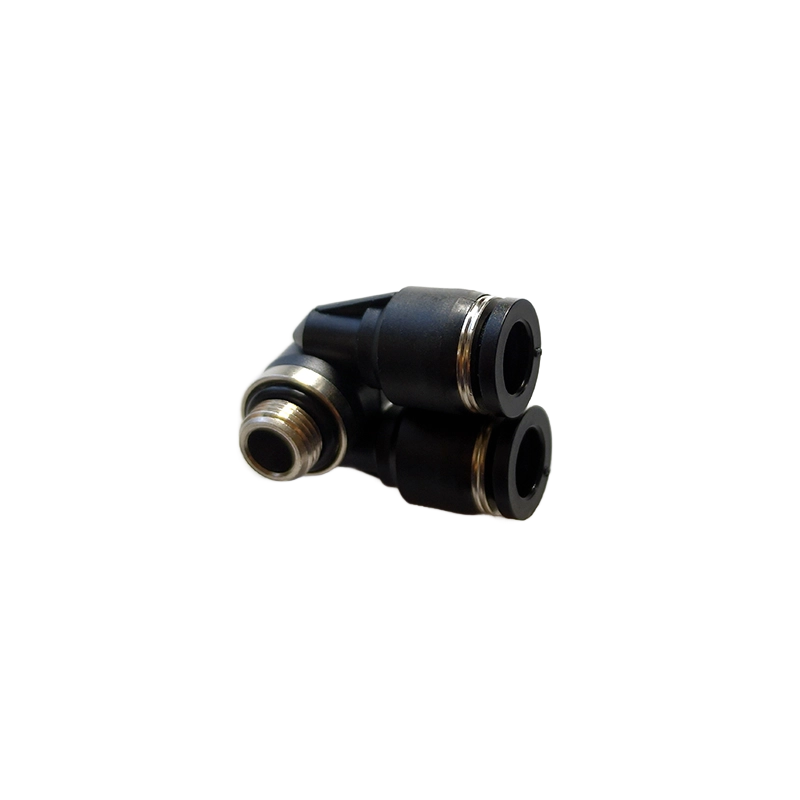

3-Way PA Male BSPP Rotary Connector, G-Thread Interface

3-Way PA Male BSPP Rotary Connector, G-Thread Interface

Plastic pneumatic fittings, one touch fittings, push fit fittings, tubing fittings, only need to push in to connect the PA and PU tubes, which is very convenient to installation and removal in the pneumatic system. The fittings for the tube from 3mm to 16mm,1/8 inch to 1/2 inch; Thread size including BSPP, BSPT, NPT, and metric thread. REAYON PNEUMATIC always provides fittings with competitive prices and excellent quality.

Application

-One-touch joints used in pneumatic piping.

-Used for a wide variety of modes to meet all needs.

-Automated production lines, packaging machinery, food & beverage processing equipment, chemical processing equipment, pneumatic tools.

Feature

-Easy to connect/disconnect tube by one touch.

-PC type is useful for piping in confined space, given its six-angle wrench prcessing inside.

-Elliptical sleeve makes it possible to be apply and remove the tube easily in confined space.

-Fittings are equipped with a Gasket, O-ring and Teflon-Treatment already on the thread.

-Model：Male BSPT Thread(R Thread) 3 Way Rotary

-Product Type & Structure：Quick Connecting Tube Fittings

-Material：Plastic、Brass、Nitrile rubber (NBR)

-Surface Treatment：Pickling、Electroplating

-Thread Specifications：M5、R1/8、R1/4、R3/8、R1/2

-Button Sizes：4、6、8、10、12

-Non-standard products also available：Φ3, Φ5, Φ7, Φ9, Φ14, Φ15, Φ1/8, etc.

- Working Pressure：0~1.0 MPa

- Operating Temperature：-10°C to +60°C

- Vacuum Pressure Rating： -100 Kpa (10 Torr)

- Fluid：Air、Water（Conditional）
